Change Physical World

Change Physical World is the description

Activities Diagram

Actors

Detail Scenarios

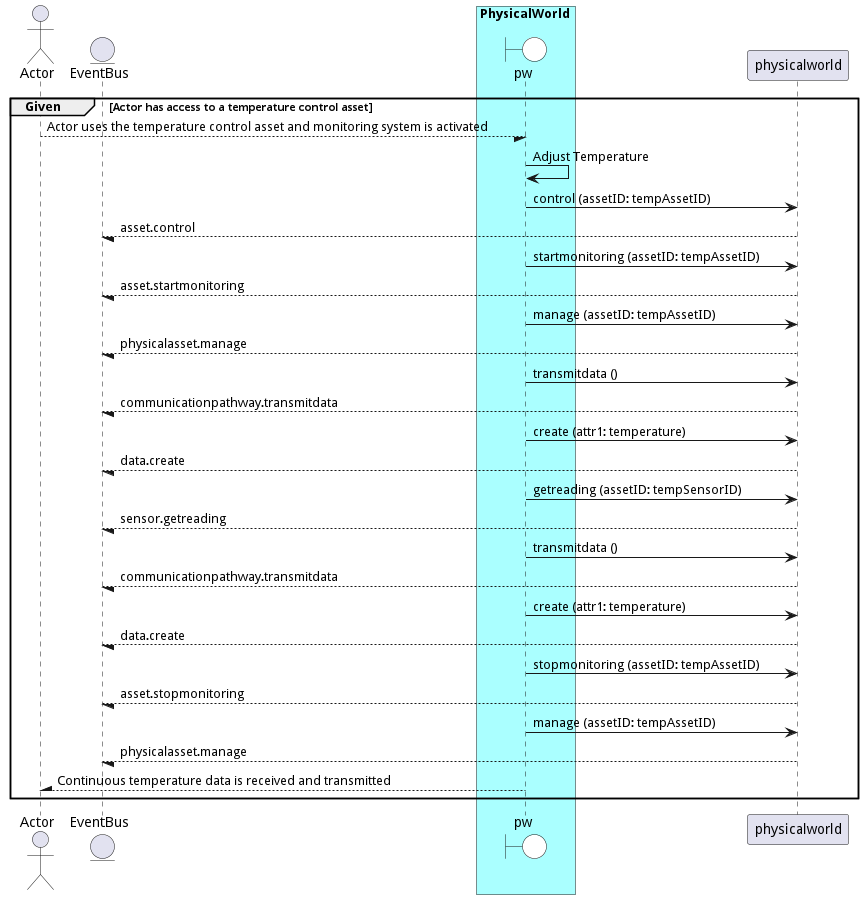

Scenario Adjust Temperature

The "Adjust Temperature" scenario involves an actor using a temperature control asset, which, when the monitoring system is activated, manages, monitors, and transmits temperature data continuously.

Scenario AdjustTemperature

Criteria

  • Given - Actor has access to a temperature control asset
  • When - Actor uses the temperature control asset and monitoring system is activated
  • Then - Actor has access to a temperature control asset

Steps

  1. edgemere/cpl/pw/asset/control –assetID tempAssetID
  2. edgemere/cpl/pw/asset/startmonitoring –assetID tempAssetID
  3. edgemere/cpl/pw/physicalasset/manage –assetID tempAssetID
  4. edgemere/cpl/pw/communicationpathway/transmitdata
  5. edgemere/cpl/pw/data/create –attr1 temperature
  6. edgemere/cpl/pw/sensor/getreading –assetID tempSensorID
  7. edgemere/cpl/pw/communicationpathway/transmitdata
  8. edgemere/cpl/pw/data/create –attr1 temperature
  9. edgemere/cpl/pw/asset/stopmonitoring –assetID tempAssetID
  10. edgemere/cpl/pw/physicalasset/manage –assetID tempAssetID

Actors

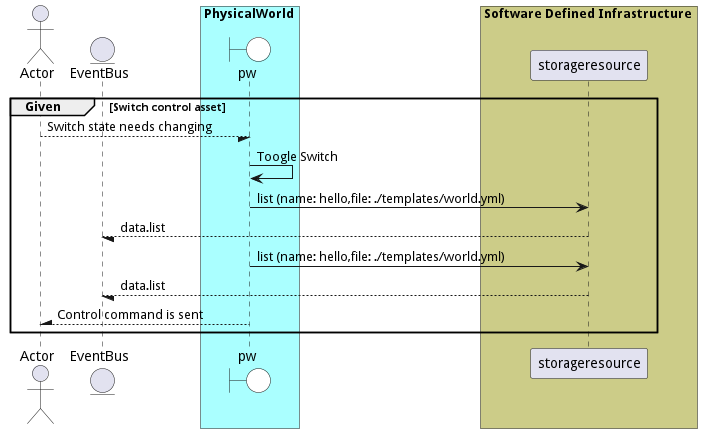

Scenario Toogle Switch

Turn on-off Switch

Scenario ToogleSwitch

Criteria

  • Given - Switch control asset
  • When - Switch state needs changing
  • Then - Switch control asset

Steps

  1. data list –name hello –file ./templates/world.yml
  2. data list –name hello –file ./templates/world.yml

Actors
