MetricComposite
Composite type of Metric. This is for metrics that are a group of metrics
Attributes
- name:string - This is the name of the metric
- value:string - This is the value of the metric

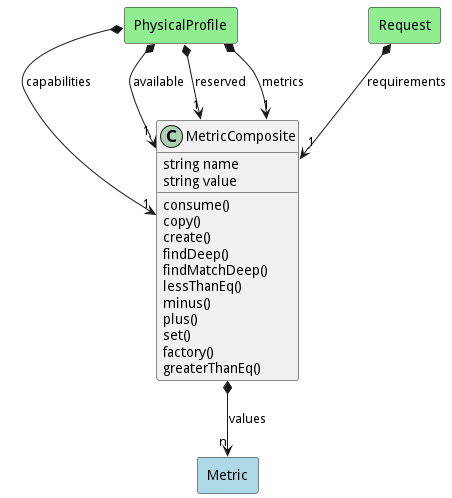

Associations
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| values | n | Metric | true | true |
Users of the Model
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| capabilities | 1 | PhysicalProfile | true | Capabilities of the element | |
| available | 1 | PhysicalProfile | true | Availability of the element | |
| reserved | 1 | PhysicalProfile | true | Reservations of the element | |
| metrics | 1 | PhysicalProfile | true | Metrics of the element | |
| requirements | 1 | Request | true | true |
Methods
- consume() - Substract metric to the current value up to zero
- copy() - Copy Metric
- create() - Create Composite Metric
- findDeep() - Find Metric with name
- findMatchDeep() - Find Metric with name
- lessThanEq() - Test less than or equal to the value passed in
- minus() - Substract metric to the current value
- plus() - Add metric to the current value
- set() - Set metric to the current value
- factory() - Create a metric based on the metrictype table
- greaterThanEq() - Test greater than or equal to the value passed in
Method Details
Action metriccomposite consume
- REST - metriccomposite/consume?value=object
- bin - metriccomposite consume –value object
- js - metriccomposite.consume({ value:object })
Description
Substract metric to the current value up to zero
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| value | object | true | Value to subtract from the metric |
Action metriccomposite copy
- REST - metriccomposite/copy?
- bin - metriccomposite copy
- js - metriccomposite.copy({ })
Description
Copy Metric
Parameters
No parameters
Action metriccomposite create
- REST - metriccomposite/create?name=string&value=object
- bin - metriccomposite create –name string –value object
- js - metriccomposite.create({ name:string,value:object })
Description
Create Composite Metric
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| name | string | false | Name of the composite metric |
| value | object | true | Values to add to the metric |
Action metriccomposite findDeep
- REST - metriccomposite/findDeep?value=object
- bin - metriccomposite findDeep –value object
- js - metriccomposite.findDeep({ value:object })
Description
Find Metric with name
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| value | object | true | Value to match with |
Action metriccomposite findMatchDeep
- REST - metriccomposite/findMatchDeep?value=object
- bin - metriccomposite findMatchDeep –value object
- js - metriccomposite.findMatchDeep({ value:object })
Description
Find Metric with name
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| value | object | true | Value to add to the metric |
Action metriccomposite lessThanEq
- REST - metriccomposite/lessThanEq?value=object
- bin - metriccomposite lessThanEq –value object
- js - metriccomposite.lessThanEq({ value:object })
Description
Test less than or equal to the value passed in
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| value | object | true | Value to test against the metric |
Action metriccomposite minus
- REST - metriccomposite/minus?value=object
- bin - metriccomposite minus –value object
- js - metriccomposite.minus({ value:object })
Description
Substract metric to the current value
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| value | object | true | Value to subtract from the metric |
Action metriccomposite plus
- REST - metriccomposite/plus?value=object
- bin - metriccomposite plus –value object
- js - metriccomposite.plus({ value:object })
Description
Add metric to the current value
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| value | object | true | Value to add to the metric |
Action metriccomposite set
- REST - metriccomposite/set?value=object
- bin - metriccomposite set –value object
- js - metriccomposite.set({ value:object })
Description
Set metric to the current value
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| value | object | true | Value to set to the metric |
Action metriccomposite factory
- REST - metriccomposite/factory?name=string&value=json
- bin - metriccomposite factory –name string –value json
- js - metriccomposite.factory({ name:string,value:json })
Description
Create a metric based on the metrictype table
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| name | string | true | name of the metric |
| value | json | true | value of the metric |
Action metriccomposite greaterThanEq
- REST - metriccomposite/greaterThanEq?value=object
- bin - metriccomposite greaterThanEq –value object
- js - metriccomposite.greaterThanEq({ value:object })
Description
Test greater than or equal to the value passed in
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| value | object | true | Value to test against the metric |
