Request

This represents a request being made for a resource in the cloud. This is only the request a set of reservations will be created for each request. When the request is satisfied the requestwill change state to Satisfied, and be returned to the requesterlong description

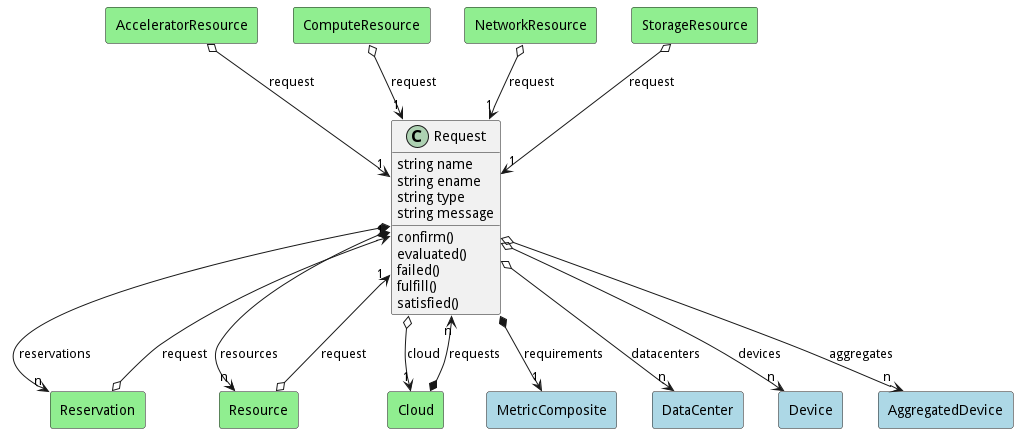

Logical Diagram

Attributes

  • name:string - Name of the request being made
  • ename:string - Extended Name of the request being made. It contains the lineage of the request in the name
  • type:string - This is the type of resource being requested
  • message:string - Last message about the request

Associations

Name Cardinality Class Composition Owner Description
requirements 1 MetricComposite true true
reservations n Reservation false true
resources n Resource false true
cloud 1 Cloud false false
datacenters n DataCenter false false
devices n Device false false
aggregates n AggregatedDevice false false

Users of the Model

Name Cardinality Class Composition Owner Description
request 1 AcceleratorResource false false
requests n Cloud false true
request 1 ComputeResource false false
request 1 NetworkResource false false
request 1 Reservation false false
request 1 Resource false false
request 1 StorageResource false false

State Net

The Request has a state net corresponding to instances of the class. Each state transistion will emit an event that can be caught with a websocket client. The name of the event is the name of the state in all lower case. The following diagram is the state net for this class.

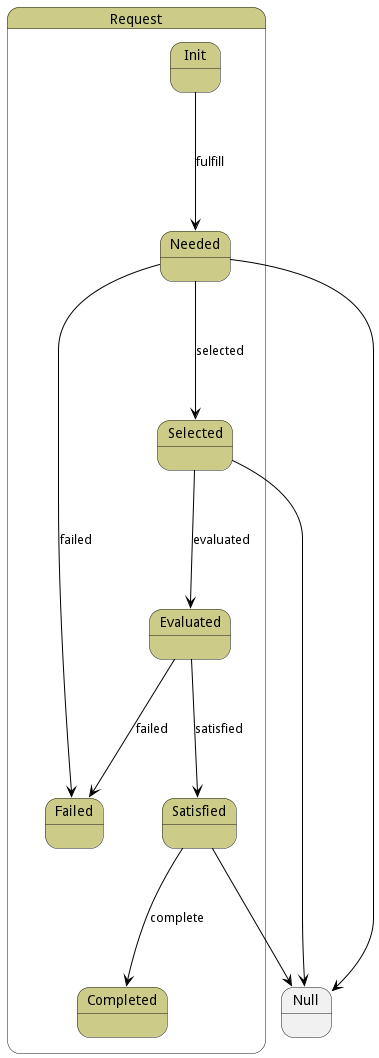

State Net Diagram

Name Description Events
Init Initial state for the Request. fulfill->Needed,
Needed Request needs to be satisfied. Anyone that can satisfy it should be notified. selected->Selected, failed->Failed,
Failed The Request has failed to be fully satisfied. All reservations are rejected
Selected The Request has been selected for target. Reservations are created. evaluated->Evaluated,
Satisfied The Request if fully satisfied. The Reservations have been rejected or accepted complete->Completed,
Evaluated The Request has been evaluated but not satisfied yet. satisfied->Satisfied, failed->Failed,
Completed The Request is completed.

Methods

Method Details

Action request confirm

  • REST - request/confirm?attr1=string
  • bin - request confirm –attr1 string
  • js - request.confirm({ attr1:string })

Description

Description of the method

Parameters

Name Type Required Description
attr1 string false Description for the parameter

Action request evaluated

  • REST - request/evaluated?
  • bin - request evaluated
  • js - request.evaluated({ })

Description

The Request is evaluated

Parameters

No parameters

Action request failed

  • REST - request/failed?message=string
  • bin - request failed –message string
  • js - request.failed({ message:string })

Description

Request Failed

Parameters

Name Type Required Description
message string false Reason why this failed

Action request fulfill

  • REST - request/fulfill?datacenters=object&devices=object&aggregates=object
  • bin - request fulfill –datacenters object –devices object –aggregates object
  • js - request.fulfill({ datacenters:object,devices:object,aggregates:object })

Description

Fulfill the request, the state of the request is moved to needed

Parameters

Name Type Required Description
datacenters object true Datacenters to be used for the fulfillment
devices object true Devices to be used for the fulfillment
aggregates object true Aggregates to be used for the fulfillment

Action request satisfied

  • REST - request/satisfied?
  • bin - request satisfied
  • js - request.satisfied({ })

Description

The Request is staisfied

Parameters

No parameters
