Hardware
The "Hardware" class, part of the "cpl" package, represents the physical hardware of a device, providing methods to manage attributes like its name and capabilities, and functions for addition of stats, enabling or disabling the hardware, and factory creation based on properties.
Attributes
- name:string - Name of the hardware
- ename:string - Extended Name of the hardware

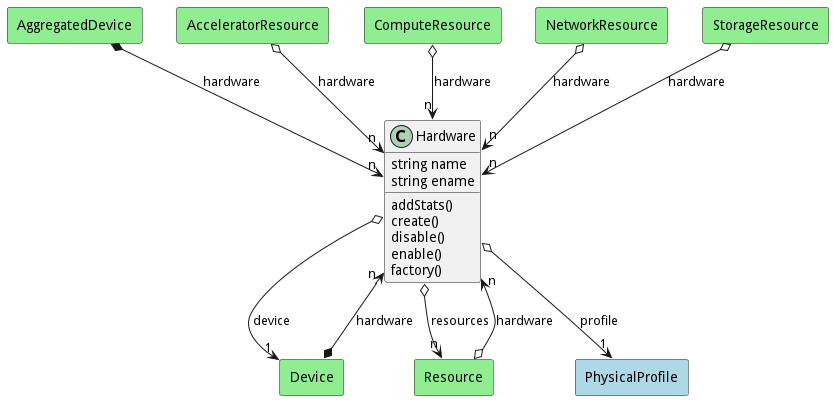

Associations
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| profile | 1 | PhysicalProfile | true | ||
| device | 1 | Device | false | false | |
| resources | n | Resource | false | false |
Users of the Model
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| hardware | n | AggregatedDevice | false | true | |
| hardware | n | Device | false | true | |
| hardware | n | AcceleratorResource | false | false | |
| hardware | n | ComputeResource | false | false | |
| hardware | n | NetworkResource | false | false | |
| hardware | n | Resource | false | false | |
| hardware | n | StorageResource | false | false |
State Net

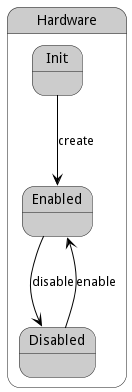

The Hardware has a state net corresponding to instances of the class. Each state transistion will emit an event that can be caught with a websocket client. The name of the event is the name of the state in all lower case. The following diagram is the state net for this class.
| Name | Description | Events |
|---|---|---|
| Init | create->Enabled, | |
| Enabled | disable->Disabled, | |
| Disabled | enable->Enabled, |
Methods
- addStats() - Add Stats to the Hardware
- create() - Create Hardware
- disable() - Disable Device and its hardware
- enable() - Enable Device to be used.
- factory() - Create Hardware based on properties
Method Details
Action hardware addStats
- REST - hardware/addStats?stats=json
- bin - hardware addStats –stats json
- js - hardware.addStats({ stats:json })
Description
Add Stats to the Hardware
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| stats | json | true | Object Map of the stats |
Action hardware create
- REST - hardware/create?name=string&capabilities=json
- bin - hardware create –name string –capabilities json
- js - hardware.create({ name:string,capabilities:json })
Description
Create Hardware
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| name | string | true | name of the hardware |
| capabilities | json | true | capabilities of the hardware |
Action hardware disable
- REST - hardware/disable?
- bin - hardware disable
- js - hardware.disable({ })
Description
Disable Device and its hardware
Parameters
No parameters
Action hardware enable
- REST - hardware/enable?
- bin - hardware enable
- js - hardware.enable({ })
Description
Enable Device to be used.
Parameters
No parameters
Action hardware factory
- REST - hardware/factory?name=string&type=string&capabilities=json
- bin - hardware factory –name string –type string –capabilities json
- js - hardware.factory({ name:string,type:string,capabilities:json })
Description
Create Hardware based on properties
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| name | string | true | name of the hardware |
| type | string | true | type of the hardware |
| capabilities | json | true | definition of the hardware |
