WorkloadInstance
The "WorkloadInstance" class in the "aml" package represents a running workload instance in the ecosystem with defined methods for creation, destruction, updating, and removing, with attributes indicating the name, status, and last message of the instance, and associated with a "Workload" type application.

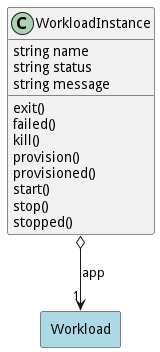

Attributes
- name:string - Name of the application instance
- status:string - Name of the application instance
- message:string - Last message in the application instance
Associations
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| app | 1 | Workload | false | false |
State Net

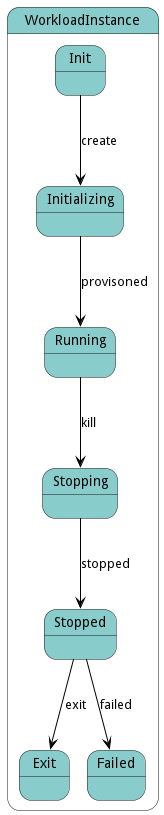

The WorkloadInstance has a state net corresponding to instances of the class. Each state transistion will emit an event that can be caught with a websocket client. The name of the event is the name of the state in all lower case. The following diagram is the state net for this class.
| Name | Description | Events |
|---|---|---|
| Init | create->Initializing, | |
| Initializing | provisoned->Running, | |
| Running | kill->Stopping, | |
| Stopping | stopped->Stopped, | |
| Stopped | exit->Exit, failed->Failed, | |
| Exit | ||
| Failed |
Methods
- exit() - Method to exit the workload instance
- failed() - Method to indicate that the workload instance has failed
- kill() - Kill the workload instance forcefully
- provision() - Method to provision the workload instance
- provisioned() - Method to change the state of the workload instance to provisioned.
- start() - Start the workload instance
- stop() - Stop the workload instance
- stopped() - Method to indicate that the workload instance has stopped
Method Details
Action workloadinstance exit
- REST - workloadinstance/exit?
- bin - workloadinstance exit
- js - workloadinstance.exit({ })
Description
Method to exit the workload instance
Parameters
No parameters
Action workloadinstance failed
- REST - workloadinstance/failed?errorMessage=string
- bin - workloadinstance failed –errorMessage string
- js - workloadinstance.failed({ errorMessage:string })
Description
Method to indicate that the workload instance has failed
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| errorMessage | string | Error message indicating the reason for the failure |
Action workloadinstance kill
- REST - workloadinstance/kill?
- bin - workloadinstance kill
- js - workloadinstance.kill({ })
Description
Kill the workload instance forcefully
Parameters
No parameters
Action workloadinstance provision
- REST - workloadinstance/provision?app=Workload
- bin - workloadinstance provision –app Workload
- js - workloadinstance.provision({ app:Workload })
Description
Method to provision the workload instance
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| app | Workload | Workload type application to provision |
Action workloadinstance provisioned
- REST - workloadinstance/provisioned?
- bin - workloadinstance provisioned
- js - workloadinstance.provisioned({ })
Description
Method to change the state of the workload instance to provisioned.
Parameters
No parameters
Action workloadinstance start
- REST - workloadinstance/start?
- bin - workloadinstance start
- js - workloadinstance.start({ })
Description
Start the workload instance
Parameters
No parameters
Action workloadinstance stop
- REST - workloadinstance/stop?
- bin - workloadinstance stop
- js - workloadinstance.stop({ })
Description
Stop the workload instance
Parameters
No parameters
Action workloadinstance stopped
- REST - workloadinstance/stopped?
- bin - workloadinstance stopped
- js - workloadinstance.stopped({ })
Description
Method to indicate that the workload instance has stopped
Parameters
No parameters
