Reservation

A reservation fullfils the request to the system for resources. When a request for a resource is made from a cloud. A reservation for the resource request is created for each device or devices that can satistfy the request. When the request is fulfilled the reservations are then no longer needed.

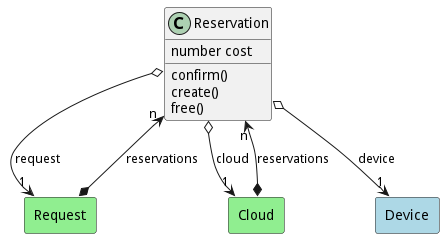

Logical Diagram

Attributes

  • cost:number - This is the cost of the reservation

Associations

Name Cardinality Class Composition Owner Description
device 1 Device false false
request 1 Request false false
cloud 1 Cloud false false

Users of the Model

Name Cardinality Class Composition Owner Description
reservations n Cloud false true
reservations n Request false true

State Net

The Reservation has a state net corresponding to instances of the class. Each state transistion will emit an event that can be caught with a websocket client. The name of the event is the name of the state in all lower case. The following diagram is the state net for this class.

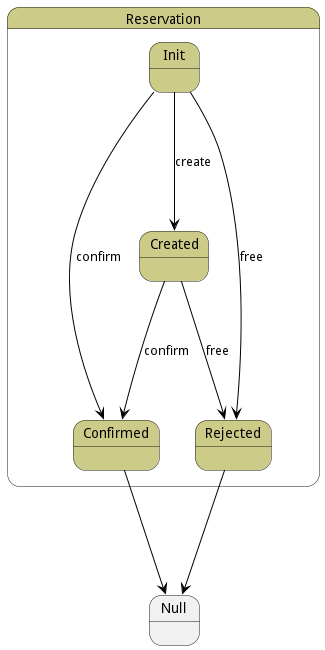

State Net Diagram

Name Description Events
Init   create->Created, confirm->Confirmed, free->Rejected,
Created Reservation is created and ready to be evaluated for best fit. confirm->Confirmed, free->Rejected,
Confirmed Reservation is confirmed and the resources will be provisioned.
Rejected Reservation was rejected and devices freed up.

Methods

Method Details

Action reservation confirm

  • REST - reservation/confirm?
  • bin - reservation confirm
  • js - reservation.confirm({ })

Description

Confirm the Reservation

Parameters

No parameters

Action reservation create

  • REST - reservation/create?
  • bin - reservation create
  • js - reservation.create({ })

Description

Create the Reservation

Parameters

No parameters

Action reservation free

  • REST - reservation/free?
  • bin - reservation free
  • js - reservation.free({ })

Description

Confirm the Reservation

Parameters

No parameters
