DataSource

DataSource represents a source of data. This could be a database, filesystem, stream of data etc.. It is an instance of a DataAdaptor. Where the DataAdapator allows for a class of data source. The DataSource takes the values of the DataAdaptor and makes them real for example, a filesystem adaptor needs a host and a root directory in order to know how to connect to it.

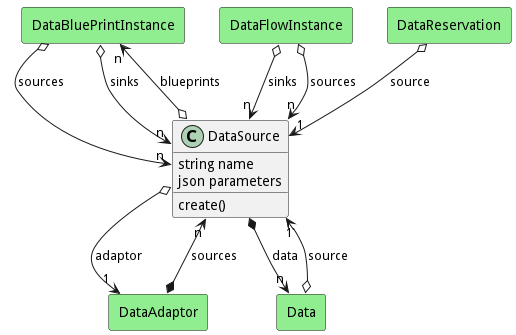

Logical Diagram

Attributes

  • name:string - Name of the Data Source
  • parameters:json - Parameters for the DataSource

Associations

Name Cardinality Class Composition Owner Description
blueprints n DataBluePrintInstance false false
adaptor 1 DataAdaptor false false
data n Data true true

Users of the Model

Name Cardinality Class Composition Owner Description
sources n DataAdaptor false true The Data Sources of the Adapator
sources n DataBluePrintInstance false false
sinks n DataBluePrintInstance false false
sinks n DataFlowInstance false false
sources n DataFlowInstance false false
source 1 DataReservation false false
source 1 Data     This is the DataSource that owns the data

State Net

The DataSource has a state net corresponding to instances of the class. Each state transistion will emit an event that can be caught with a websocket client. The name of the event is the name of the state in all lower case. The following diagram is the state net for this class.

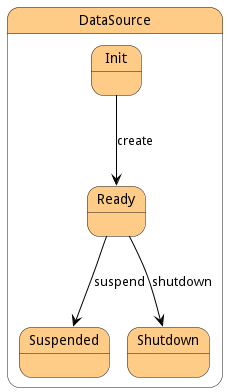

State Net Diagram

Name Description Events
Init Initial State create->Ready,
Ready Data Source Ready to be used suspend->Suspended, shutdown->Shutdown,
Suspended
Shutdown

Methods

Method Details

Action datasource create

  • REST - datasource/create?name=string&adaptor=ref&file=YAML&parameters=string
  • bin - datasource create –name string –adaptor ref –file YAML –parameters string
  • js - datasource.create({ name:string,adaptor:ref,file:YAML,parameters:string })

Description

Create a Data Source

Parameters

Name Type Required Description
name string true name of the data source
adaptor ref true Adaptor for the data source
file YAML false file with the definition
parameters string false parameters comma separated name=value,vname2=value2
