AggregatedDevice

This is a construct that has other devices under it

Attributes

• name:string - Name of the aggregated device
• ename:string - Extended name of the aggregated device
• hostname:string - Hostname of the device
• type:string - Type of the Device

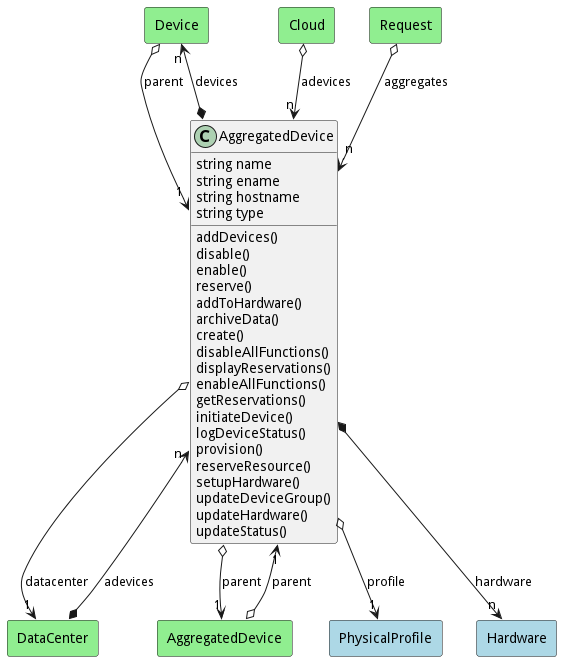

Associations

Name	Cardinality	Class	Composition	Owner	Description
devices	n	Device	false	true
profile	1	PhysicalProfile	true
datacenter	1	DataCenter	false	false
hardware	n	Hardware	false	true
parent	1	AggregatedDevice	false	false

Users of the Model

Name	Cardinality	Class	Composition	Owner	Description
parent	1	AggregatedDevice	false	false
adevices	n	DataCenter	false	true
parent	1	Device	false	false
adevices	n	Cloud	false	false
aggregates	n	Request	false	false

State Net

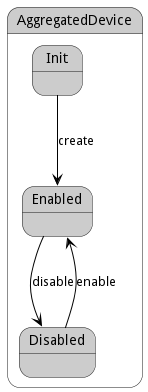

The AggregatedDevice has a state net corresponding to instances of the class. Each state transistion will emit an event that can be caught with a websocket client. The name of the event is the name of the state in all lower case. The following diagram is the state net for this class.

Name	Description	Events
Init		create->Enabled,
Enabled		disable->Disabled,
Disabled		enable->Enabled,

Methods

• addDevices() - Add Devices to the Aggregated Device
• disable() - Disable Device and its hardware
• enable() - Enable Device to be used.
• reserve() - Reserve a resource
• addToHardware() - Create a Device
• archiveData() - Archive all data related to this device
• create() - Create a Device
• disableAllFunctions() - Disable all functions of this device
• displayReservations() - Display all the reservations for this device
• enableAllFunctions() - Enable all functions of this device
• getReservations() - Get reservation from the requirements
• initiateDevice() - Initiate the device after creation
• logDeviceStatus() - Log the status of the device when moving from this state
• provision() - Provision Hardware to meet the requirements
• reserveResource() - Reserve a resource through this device
• setupHardware() - Setup the hardware according to the provision
• updateDeviceGroup() - Update the device group after a new device is added or removed
• updateHardware() - Update the hardware after a device is added
• updateStatus() - Update the status of device after an update

Method Details

Action aggregateddevice addDevices

• REST - aggregateddevice/addDevices?item=object
• bin - aggregateddevice addDevices –item object
• js - aggregateddevice.addDevices({ item:object })

Description

Add Devices to the Aggregated Device

Parameters

Name	Type	Required	Description
item	object	true	Devices to add to the Aggregated Device

Action aggregateddevice disable

• REST - aggregateddevice/disable?
• bin - aggregateddevice disable
• js - aggregateddevice.disable({ })

Description

Disable Device and its hardware

Parameters

No parameters

Action aggregateddevice enable

• REST - aggregateddevice/enable?
• bin - aggregateddevice enable
• js - aggregateddevice.enable({ })

Description

Enable Device to be used.

Parameters

No parameters

Action aggregateddevice reserve

• REST - aggregateddevice/reserve?request=object
• bin - aggregateddevice reserve –request object
• js - aggregateddevice.reserve({ request:object })

Description

Reserve a resource

Parameters

Name	Type	Required	Description
request	object	true	Request for the reservation

Action aggregateddevice addToHardware

• REST - aggregateddevice/addToHardware?
• bin - aggregateddevice addToHardware
• js - aggregateddevice.addToHardware({ })

Description

Create a Device

Parameters

No parameters

Action aggregateddevice archiveData

• REST - aggregateddevice/archiveData?deviceName=string
• bin - aggregateddevice archiveData –deviceName string
• js - aggregateddevice.archiveData({ deviceName:string })

Description

Archive all data related to this device

Parameters

Name	Type	Required	Description
deviceName	string		Name of the device

Action aggregateddevice create

• REST - aggregateddevice/create?name=string&file=YAML
• bin - aggregateddevice create –name string –file YAML
• js - aggregateddevice.create({ name:string,file:YAML })

Description

Create a Device

Parameters

Name	Type	Required	Description
name	string	true	name of the device
file	YAML	false	file with the definition

Action aggregateddevice disableAllFunctions

• REST - aggregateddevice/disableAllFunctions?
• bin - aggregateddevice disableAllFunctions
• js - aggregateddevice.disableAllFunctions({ })

Description

Disable all functions of this device

Parameters

No parameters

Action aggregateddevice displayReservations

• REST - aggregateddevice/displayReservations?deviceName=string
• bin - aggregateddevice displayReservations –deviceName string
• js - aggregateddevice.displayReservations({ deviceName:string })

Description

Display all the reservations for this device

Parameters

Name	Type	Required	Description
deviceName	string		Name of the device

Action aggregateddevice enableAllFunctions

• REST - aggregateddevice/enableAllFunctions?
• bin - aggregateddevice enableAllFunctions
• js - aggregateddevice.enableAllFunctions({ })

Description

Enable all functions of this device

Parameters

No parameters

Action aggregateddevice getReservations

• REST - aggregateddevice/getReservations?requirements=YAML
• bin - aggregateddevice getReservations –requirements YAML
• js - aggregateddevice.getReservations({ requirements:YAML })

Description

Get reservation from the requirements

Parameters

Name	Type	Required	Description
requirements	YAML	true	Requirements for the Reservation

Action aggregateddevice initiateDevice

• REST - aggregateddevice/initiateDevice?deviceName=string
• bin - aggregateddevice initiateDevice –deviceName string
• js - aggregateddevice.initiateDevice({ deviceName:string })

Description

Initiate the device after creation

Parameters

Name	Type	Required	Description
deviceName	string		Name of the device

Action aggregateddevice logDeviceStatus

• REST - aggregateddevice/logDeviceStatus?deviceName=string
• bin - aggregateddevice logDeviceStatus –deviceName string
• js - aggregateddevice.logDeviceStatus({ deviceName:string })

Description

Log the status of the device when moving from this state

Parameters

Name	Type	Required	Description
deviceName	string		Name of the device

Action aggregateddevice provision

• REST - aggregateddevice/provision?requirements=json
• bin - aggregateddevice provision –requirements json
• js - aggregateddevice.provision({ requirements:json })

Description

Provision Hardware to meet the requirements

Parameters

Name	Type	Required	Description
requirements	json	true	Requirements for the Provision

Action aggregateddevice reserveResource

• REST - aggregateddevice/reserveResource?deviceName=string&resource=string
• bin - aggregateddevice reserveResource –deviceName string –resource string
• js - aggregateddevice.reserveResource({ deviceName:string,resource:string })

Description

Reserve a resource through this device

Parameters

Name	Type	Required	Description
deviceName	string		Name of the device
resource	string		Resource to reserve

Action aggregateddevice setupHardware

• REST - aggregateddevice/setupHardware?deviceName=string&hardwareConfig=json
• bin - aggregateddevice setupHardware –deviceName string –hardwareConfig json
• js - aggregateddevice.setupHardware({ deviceName:string,hardwareConfig:json })

Description

Setup the hardware according to the provision

Parameters

Name	Type	Required	Description
deviceName	string		Name of the device
hardwareConfig	json		Hardware configuration

Action aggregateddevice updateDeviceGroup

• REST - aggregateddevice/updateDeviceGroup?deviceName=string&groupName=string
• bin - aggregateddevice updateDeviceGroup –deviceName string –groupName string
• js - aggregateddevice.updateDeviceGroup({ deviceName:string,groupName:string })

Description

Update the device group after a new device is added or removed

Parameters

Name	Type	Required	Description
deviceName	string		Name of the device
groupName	string		Name of the device group

Action aggregateddevice updateHardware

• REST - aggregateddevice/updateHardware?deviceName=string
• bin - aggregateddevice updateHardware –deviceName string
• js - aggregateddevice.updateHardware({ deviceName:string })

Description

Update the hardware after a device is added

Parameters

Name	Type	Required	Description
deviceName	string		Name of the device

Action aggregateddevice updateStatus

• REST - aggregateddevice/updateStatus?deviceName=string
• bin - aggregateddevice updateStatus –deviceName string
• js - aggregateddevice.updateStatus({ deviceName:string })

Description

Update the status of device after an update

Parameters

Name	Type	Required	Description
deviceName	string		Name of the device
