Stack

A Stack is an aggregation of services in one context. The Stack can have any number of Services and has a stacklet for each environment in the system. Application typically have 1 or more stacks to define their applications.

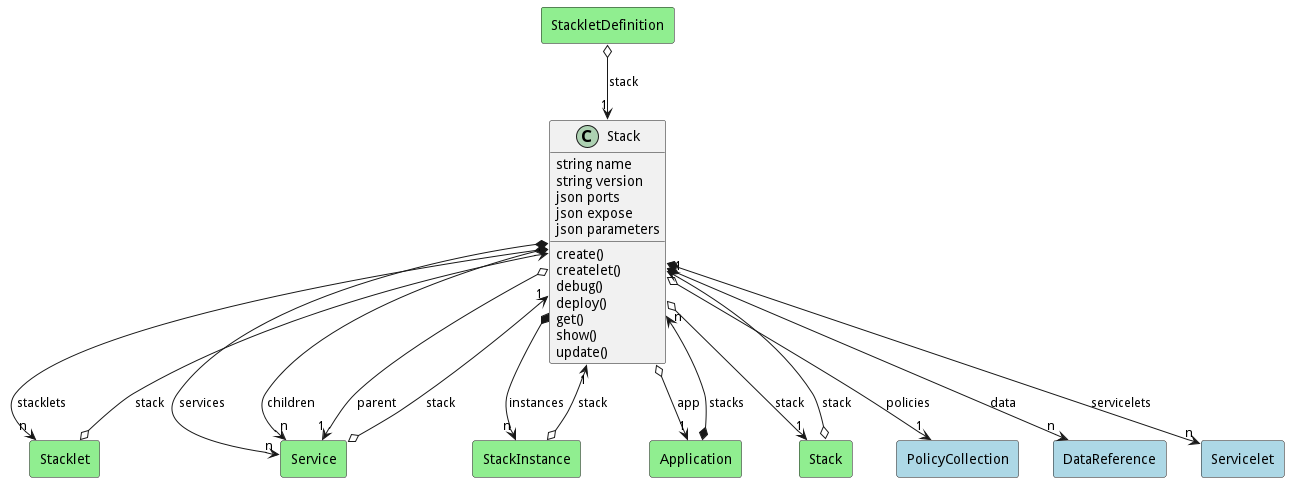

Logical Diagram

Attributes

  • name:string - Name of the Service
  • version:string - Version of the Service
  • ports:json - List of ports internally
  • expose:json - List of ports to expose
  • parameters:json - [ {name: value} ] - Lsit of parameters for the service

Associations

Name Cardinality Class Composition Owner Description
policies 1 PolicyCollection false false Policy Collection
stacklets n Stacklet true true Stacklets of the stack and environment
services n Service true true Services of the stack
instances n StackInstance true true Instances of the stack
app 1 Application false false Applications of the stacks
data n DataReference false true Data for the stack
stack 1 Stack false false Parent Stack of the service
servicelets n Servicelet true true Servicelets of the service (Environment)
children n Service false false Child services of the service
parent 1 Service false false Parent of the service

Users of the Model

Name Cardinality Class Composition Owner Description
stacks n Application true true
stack 1 Service false false Parent Stack of the service
stack 1 Stack false false Parent Stack of the service
stack 1 Stacklet false false Parent Stack for the Stacklet
stack 1 StackletDefinition false false Stack for the Stacklet
stack 1 StackInstance false false Stack of the Stack Instance

Methods

Method Details

Action stack create

  • REST - stack/create?
  • bin - stack create
  • js - stack.create({ })

Description

Create a Stack

Parameters

No parameters

Action stack createlet

  • REST - stack/createlet?
  • bin - stack createlet
  • js - stack.createlet({ })

Description

Create a Stack

Parameters

No parameters

Action stack debug

  • REST - stack/debug?
  • bin - stack debug
  • js - stack.debug({ })

Description

Debug a Stack

Parameters

No parameters

Action stack deploy

  • REST - stack/deploy?tag=string&env=string&args=json
  • bin - stack deploy –tag string –env string –args json
  • js - stack.deploy({ tag:string,env:string,args:json })

Description

Deploy a Stack

Parameters

Name Type Required Description
tag string false Tag of the deployment of the stack. This is used to reference the deployed stack.
env string false Name of the deployment environment
args json false Arguments passed into the stack deployment

Action stack get

  • REST - stack/get?
  • bin - stack get
  • js - stack.get({ })

Description

Get a Stack

Parameters

No parameters

Action stack show

  • REST - stack/show?
  • bin - stack show
  • js - stack.show({ })

Description

Show a Stack

Parameters

No parameters

Action stack update

  • REST - stack/update?
  • bin - stack update
  • js - stack.update({ })

Description

Update a Stack

Parameters

No parameters
