DataCenter

The "DataCenter" class, belonging to the CPL package, facilitates the management of physical data centers, including operations such as creating, updating, disabling, enabling, and destroying data centers, managing devices within the data center, capacity planning, and handling device reservations.

Attributes

• name:string - Name of the Datacenter

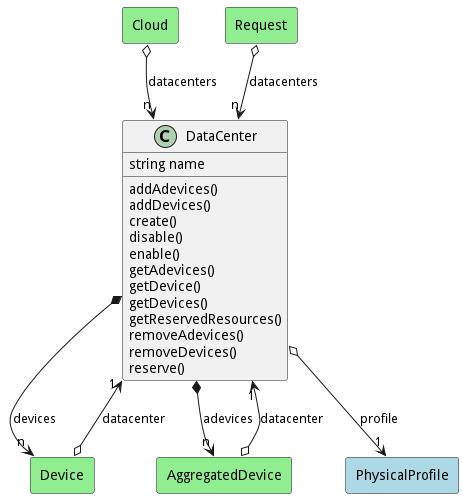

Associations

Name	Cardinality	Class	Composition	Owner	Description
profile	1	PhysicalProfile	true
devices	n	Device	false	true
adevices	n	AggregatedDevice	false	true

Users of the Model

Name	Cardinality	Class	Composition	Owner	Description
datacenter	1	AggregatedDevice	false	false
datacenter	1	Device	false	false
datacenters	n	Cloud	false	false
datacenters	n	Request	false	false

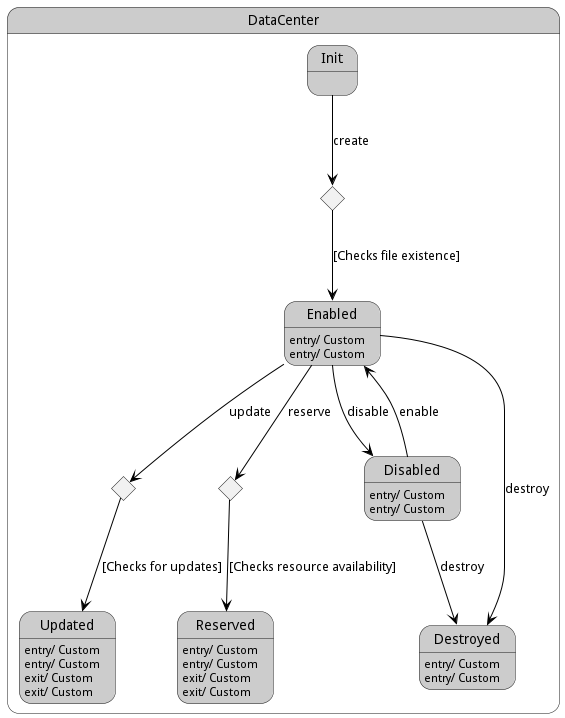

State Net

The DataCenter has a state net corresponding to instances of the class. Each state transistion will emit an event that can be caught with a websocket client. The name of the event is the name of the state in all lower case. The following diagram is the state net for this class.

Name	Description	Events
Init	Data Center is not created	create->Enabled,
Enabled	Data Center is enabled	disable->Disabled, destroy->Destroyed, update->Updated, reserve->Reserved,
Disabled	Data Center is disabled	enable->Enabled, destroy->Destroyed,
Destroyed	Data Center is destroyed
Updated	Data Center is updated
Reserved	Resource is reserved

Methods

• addAdevices() - Add Adevices to the Data Center
• addDevices() - Add Devices to the Data Center
• create() - Create a Data Center
• disable() - Disable Device and its hardware
• enable() - Enable Device to be used.
• getAdevices() - Get all Aggregated Devices associated with the Data Center
• getDevice() - Get specific device details in the Data Center
• getDevices() - Get all devices associated with the Data Center
• getReservedResources() - Get List of all reserved resources in the Data Center
• removeAdevices() - Remove Aggregated Devices from the data center
• removeDevices() - Remove Devices from the data center
• reserve() - Reserve a resource

Method Details

Action datacenter addAdevices

• REST - datacenter/addAdevices?item=object
• bin - datacenter addAdevices –item object
• js - datacenter.addAdevices({ item:object })

Description

Add Adevices to the Data Center

Parameters

Name	Type	Required	Description
item	object	true	Adevices to add to the Data Center

Action datacenter addDevices

• REST - datacenter/addDevices?datacenter=string&parentDevice=string&file=YAML
• bin - datacenter addDevices –datacenter string –parentDevice string –file YAML
• js - datacenter.addDevices({ datacenter:string,parentDevice:string,file:YAML })

Description

Add Devices to the Data Center

Parameters

Name	Type	Required	Description
datacenter	string	false	Name of the Data Center
parentDevice	string	false	Name of the Parent Device
file	YAML	false	file with the definition

Action datacenter create

• REST - datacenter/create?name=string&file=YAML
• bin - datacenter create –name string –file YAML
• js - datacenter.create({ name:string,file:YAML })

Description

Create a Data Center

Parameters

Name	Type	Required	Description
name	string	true	name of the DataCenter
file	YAML	false	file with the definition

Action datacenter disable

• REST - datacenter/disable?
• bin - datacenter disable
• js - datacenter.disable({ })

Description

Disable Device and its hardware

Parameters

No parameters

Action datacenter enable

• REST - datacenter/enable?
• bin - datacenter enable
• js - datacenter.enable({ })

Description

Enable Device to be used.

Parameters

No parameters

Action datacenter getAdevices

• REST - datacenter/getAdevices?dataCenterName=string
• bin - datacenter getAdevices –dataCenterName string
• js - datacenter.getAdevices({ dataCenterName:string })

Description

Get all Aggregated Devices associated with the Data Center

Parameters

Name	Type	Required	Description
dataCenterName	string		Name of the Data Center

Action datacenter getDevice

• REST - datacenter/getDevice?dataCenterName=string&deviceName=string
• bin - datacenter getDevice –dataCenterName string –deviceName string
• js - datacenter.getDevice({ dataCenterName:string,deviceName:string })

Description

Get specific device details in the Data Center

Parameters

Name	Type	Required	Description
dataCenterName	string		Name of the Data Center
deviceName	string		Name of the Device

Action datacenter getDevices

• REST - datacenter/getDevices?dataCenterName=string
• bin - datacenter getDevices –dataCenterName string
• js - datacenter.getDevices({ dataCenterName:string })

Description

Get all devices associated with the Data Center

Parameters

Name	Type	Required	Description
dataCenterName	string		Name of the Data Center

Action datacenter getReservedResources

• REST - datacenter/getReservedResources?dataCenterName=string
• bin - datacenter getReservedResources –dataCenterName string
• js - datacenter.getReservedResources({ dataCenterName:string })

Description

Get List of all reserved resources in the Data Center

Parameters

Name	Type	Required	Description
dataCenterName	string		Name of the Data Center

Action datacenter removeAdevices

• REST - datacenter/removeAdevices?dataCenterName=string&adevices=array
• bin - datacenter removeAdevices –dataCenterName string –adevices array
• js - datacenter.removeAdevices({ dataCenterName:string,adevices:array })

Description

Remove Aggregated Devices from the data center

Parameters

Name	Type	Required	Description
dataCenterName	string		Name of the Data Center
adevices	array		List of aggregated device names to be removed

Action datacenter removeDevices

• REST - datacenter/removeDevices?dataCenterName=string&devices=array
• bin - datacenter removeDevices –dataCenterName string –devices array
• js - datacenter.removeDevices({ dataCenterName:string,devices:array })

Description

Remove Devices from the data center

Parameters

Name	Type	Required	Description
dataCenterName	string		Name of the Data Center
devices	array		List of device names to be removed

Action datacenter reserve

• REST - datacenter/reserve?request=object
• bin - datacenter reserve –request object
• js - datacenter.reserve({ request:object })

Description

Reserve a resource

Parameters

Name	Type	Required	Description
request	object	true	Request for the reservation
