DataAdaptor
The Data Adaptor is the mechanism that is a proxy to the data in the physical form. For example there is a Data Adaptor for a filesystem, SQL database, or a data stream. Data Adaptors handle the ingestion of the data, management of the data, and access to the data.
Attributes
- name:string - Name of the adaptor

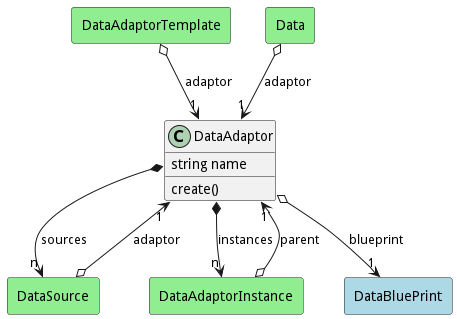

Associations
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| blueprint | 1 | DataBluePrint | false | false | |
| sources | n | DataSource | false | true | The Data Sources of the Adapator |
| instances | n | DataAdaptorInstance | false | true | Instance of a DataAdaptor |
Users of the Model
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| parent | 1 | DataAdaptorInstance | false | false | |
| adaptor | 1 | DataAdaptorTemplate | false | false | |
| adaptor | 1 | DataSource | false | false | |
| adaptor | 1 | Data | This is the DataAdaptor for the Data, it shows how to connect to the data |
Methods
Method Details
Action dataadaptor create
- REST - dataadaptor/create?name=string&file=YAML
- bin - dataadaptor create –name string –file YAML
- js - dataadaptor.create({ name:string,file:YAML })
Description
Create a Data Adaptor
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| name | string | true | name of the data adaptor |
| file | YAML | false | file with the definition |
