Resource
Resource in the cloud. Can be network, storage or compute.
Attributes
- name:string - Name of the resource
- ename:string - Extended name of the resource
- disabled:boolean - Disabled Resource
- type:string - Type of resource, Network, Storage, Compute or Accelerator

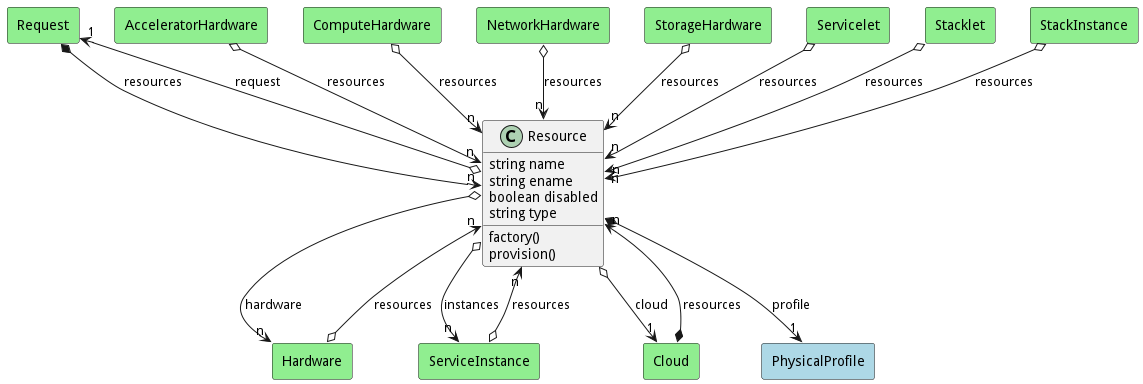

Associations
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| request | 1 | Request | false | false | |
| profile | 1 | PhysicalProfile | true | true | |
| hardware | n | Hardware | false | false | |
| instances | n | ServiceInstance | false | false | |
| cloud | 1 | Cloud | false | false |
Users of the Model
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| resources | n | AcceleratorHardware | false | false | |
| resources | n | ComputeHardware | false | false | |
| resources | n | Hardware | false | false | |
| resources | n | NetworkHardware | false | false | |
| resources | n | StorageHardware | false | false | |
| resources | n | Servicelet | false | false | resource requests for the servicelet |
| resources | n | Stacklet | false | false | resource requests for the servicelet |
| resources | n | ServiceInstance | false | false | Resources used to host this service instance |
| resources | n | StackInstance | false | false | Resources used to host this service instance |
| resources | n | Cloud | false | true | |
| resources | n | Request | false | true |
State Net

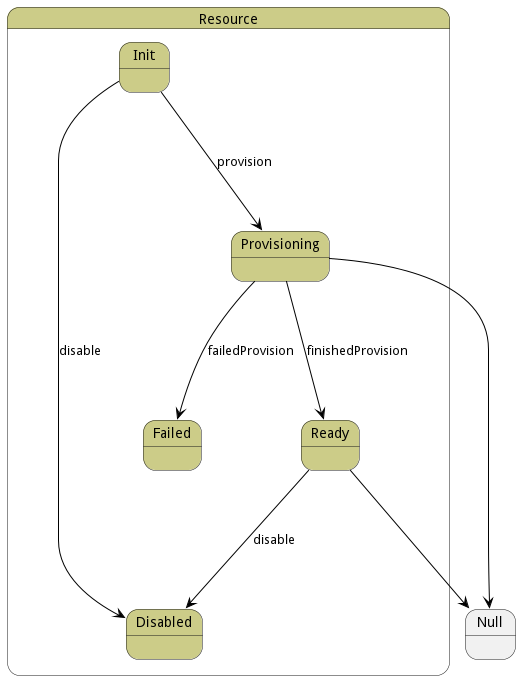

The Resource has a state net corresponding to instances of the class. Each state transistion will emit an event that can be caught with a websocket client. The name of the event is the name of the state in all lower case. The following diagram is the state net for this class.
| Name | Description | Events |
|---|---|---|
| Init | provision->Provisioning, disable->Disabled, | |
| Provisioning | finishedProvision->Ready, failedProvision->Failed, | |
| Failed | ||
| Ready | disable->Disabled, | |
| Disabled |
Methods
- factory() - Create a Resource based on the hardware to resource table
- provision() - Provision the Resource
Method Details
Action resource factory
- REST - resource/factory?name=string&value=object
- bin - resource factory –name string –value object
- js - resource.factory({ name:string,value:object })
Description
Create a Resource based on the hardware to resource table
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| name | string | true | name of the Resource |
| value | object | true | value of the hardware |
Action resource provision
- REST - resource/provision?
- bin - resource provision
- js - resource.provision({ })
Description
Provision the Resource
Parameters
No parameters
