AcceleratorHardware
Represents Hardware that is an accelerator
Attributes
- name:string - Name of the hardware
- ename:string - Extended Name of the hardware

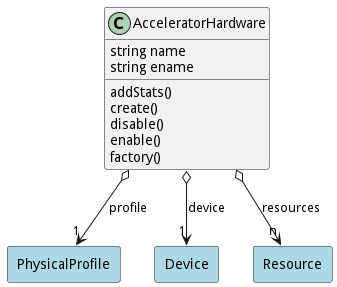

Associations
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| profile | 1 | PhysicalProfile | true | ||
| device | 1 | Device | false | false | |
| resources | n | Resource | false | false |
Methods
- addStats() - Add Stats to the Hardware
- create() - Create Hardware
- disable() - Disable Device and its hardware
- enable() - Enable Device to be used.
- factory() - Create Hardware based on properties
Method Details
Action acceleratorhardware addStats
- REST - acceleratorhardware/addStats?stats=json
- bin - acceleratorhardware addStats –stats json
- js - acceleratorhardware.addStats({ stats:json })
Description
Add Stats to the Hardware
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| stats | json | true | Object Map of the stats |
Action acceleratorhardware create
- REST - acceleratorhardware/create?name=string&capabilities=json
- bin - acceleratorhardware create –name string –capabilities json
- js - acceleratorhardware.create({ name:string,capabilities:json })
Description
Create Hardware
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| name | string | true | name of the hardware |
| capabilities | json | true | capabilities of the hardware |
Action acceleratorhardware disable
- REST - acceleratorhardware/disable?
- bin - acceleratorhardware disable
- js - acceleratorhardware.disable({ })
Description
Disable Device and its hardware
Parameters
No parameters
Action acceleratorhardware enable
- REST - acceleratorhardware/enable?
- bin - acceleratorhardware enable
- js - acceleratorhardware.enable({ })
Description
Enable Device to be used.
Parameters
No parameters
Action acceleratorhardware factory
- REST - acceleratorhardware/factory?name=string&type=string&capabilities=json
- bin - acceleratorhardware factory –name string –type string –capabilities json
- js - acceleratorhardware.factory({ name:string,type:string,capabilities:json })
Description
Create Hardware based on properties
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| name | string | true | name of the hardware |
| type | string | true | type of the hardware |
| capabilities | json | true | definition of the hardware |
