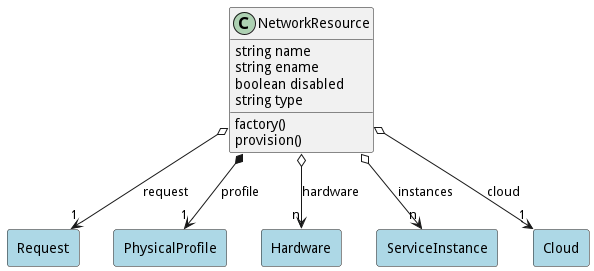

NetworkResource
Logical Resource of Network that are provisioned
Attributes
- name:string - Name of the resource
- ename:string - Extended name of the resource
- disabled:boolean - Disabled Resource
- type:string - Type of resource, Network, Storage, Compute or Accelerator
Associations
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| request | 1 | Request | false | false | |
| profile | 1 | PhysicalProfile | true | true | |
| hardware | n | Hardware | false | false | |
| instances | n | ServiceInstance | false | false | |
| cloud | 1 | Cloud | false | false |
Methods
- factory() - Create a Resource based on the hardware to resource table
- provision() - Provision the Resource
Method Details
Action networkresource factory
- REST - networkresource/factory?name=string&value=object
- bin - networkresource factory –name string –value object
- js - networkresource.factory({ name:string,value:object })
Description
Create a Resource based on the hardware to resource table
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| name | string | true | name of the Resource |
| value | object | true | value of the hardware |
Action networkresource provision
- REST - networkresource/provision?
- bin - networkresource provision
- js - networkresource.provision({ })
Description
Provision the Resource
Parameters
No parameters
