Service
A Service is an orchestratable element that represents a container or vm running against a resource. The actual execution of the service is tracked by the ServiceInstance. A stack is made up of multiple services.
Attributes
- name:string - Name of the Service
- version:string - Version of the Service
- ports:json - List of ports internally
- expose:json - List of ports to expose
- parameters:json - [ {name: value} ] - Lsit of parameters for the service

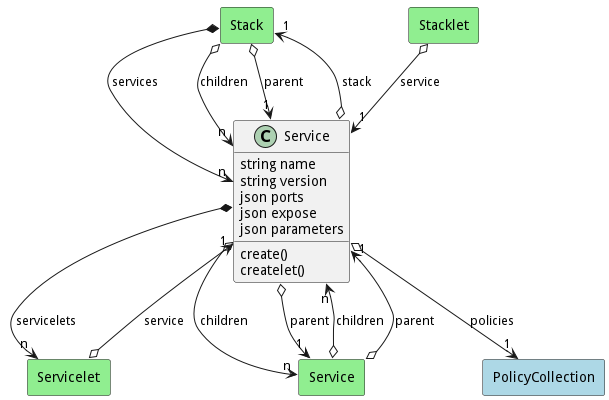

Associations
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| stack | 1 | Stack | false | false | Parent Stack of the service |
| servicelets | n | Servicelet | true | true | Servicelets of the service (Environment) |
| children | n | Service | false | false | Child services of the service |
| parent | 1 | Service | false | false | Parent of the service |
| policies | 1 | PolicyCollection | false | false | Policies of the Service |
Users of the Model
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| children | n | Service | false | false | Child services of the service |
| parent | 1 | Service | false | false | Parent of the service |
| service | 1 | Servicelet | false | false | Service for the servicelet, this is what service is run. This could be a service or a stack |
| services | n | Stack | true | true | Services of the stack |
| children | n | Stack | false | false | Child services of the service |
| parent | 1 | Stack | false | false | Parent of the service |
| service | 1 | Stacklet | false | false | Service for the servicelet, this is what service is run. This could be a service or a stack |
Methods
Method Details
Action service create
- REST - service/create?
- bin - service create
- js - service.create({ })
Description
Create a Service
Parameters
No parameters
Action service createlet
- REST - service/createlet?
- bin - service createlet
- js - service.createlet({ })
Description
Create a Stack
Parameters
No parameters
