Data Orchestrator
Data Orchestrator is a package that contains…
Use Cases
The following are the use cases of the Data Orchestrator subsystem. Each use case has primary and secondary scenarios that are elaborated in the use case descriptions.
Users
The following are the actors of the Data Orchestrator subsystem. This can include people, other subsystems inside the solution and even external subsystems.
Interface
The subsystem has a REST, CLI, WebSocket, and Web interface. Use Cases and Scenarios can use any or all of the interfaces to perform the work that needs to be completed. The following diagram shows how users interact with the system.

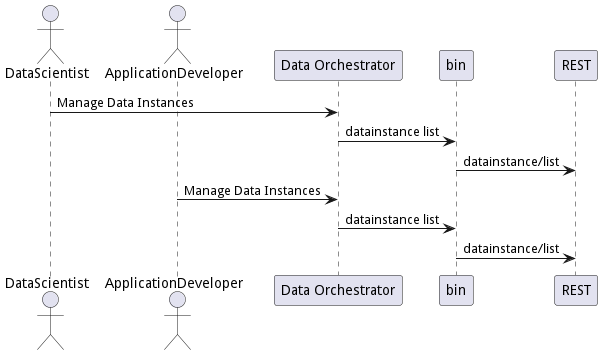

- edgemere diml dml do evaluate
- edgemere diml dml do reserve
- edgemere diml dml do datainstance create
- edgemere diml dml do datainstance destroy
- edgemere diml dml do datainstance find
- edgemere diml dml do datainstance list
Logical Artifacts
The Data Model for the Data Orchestrator subsystem shows how the different objects and classes of object interact and their structure.
Sub Packages
The Data Orchestrator subsystem has sub packages as well. These subsystems are logical components to better organize the architecture and make it easier to analyze, understand, design, and implement.
Classes
The following are the classes in the data model of the Data Orchestrator subsystem.
Deployment Architecture
This subsystem is deployed using micro-services as shown in the diagram below. The ‘micro’ module is used to implement the micro-services in the system. The subsystem also has an CLI, REST and Web Interface exposed through a nodejs application. The nodejs application will interface with the micro-services and can monitor and drive work-flows through the mesh of micro-services. The deployment of the subsystem is dependent on the environment it is deployed. This subsystem has the following environments:
Physical Architecture
The Data Orchestrator subsystem is physically laid out on a hybrid cloud infrastructure. Each microservice belongs to a secure micro-segmented network. All of the micro-services communicate to each other and the main app through a REST interface. A Command Line Interface (CLI), REST or Web User interface for the app is how other subsystems or actors interact. Requests are forwarded to micro-services through the REST interface of each micro-service. The subsystem has the a unique layout based on the environment the physical space. The following are the environments for this subsystems.
Micro-Services
These are the micro-services for the subsystem. The combination of the micro-services help implement the subsystem’s logic.
dev
Detail information for the dev environment can be found here
Services in the dev environment
- web : diml_dml_do_web
test
Detail information for the test environment can be found here
Services in the test environment
- web : diml_dml_do_web
prod
Detail information for the prod environment can be found here
Services in the prod environment
- web : diml_dml_do_web
Activities and Flows
The Data Orchestrator subsystem provides the following activities and flows that help satisfy the use cases and scenarios of the subsystem.
Messages Handled
The Data Orchestrator subsystem is an event driven architecture and handle several events. The following events are handled by this subsystem. Please note that this subsystem is not the only subsystem that handles these events.
| Message | Action | Description |
|---|---|---|
| datareference.provisioning | /diml/dml/do/datainstance/create | |
| datarequest.needed | /diml/dml/do/reserve | |
| datarequest.selected | /diml/dml/do/evaluate |
Messages Sent
| Event | Description | Emitter |
|---|---|---|
| datainstance.create | When an object of type DataInstance is created. | DataInstance |
| datainstance.destroy | When an object of type DataInstance is destroyed. | DataInstance |
| datainstance.updated | When an object of type DataInstance has an attribute or association updated. | DataInstance |
| datarequest.create | When an object of type DataRequest is created. | DataRequest |
| datarequest.destroy | When an object of type DataRequest is destroyed. | DataRequest |
| datarequest.updated | When an object of type DataRequest has an attribute or association updated. | DataRequest |
| datareservation.create | When an object of type DataReservation is created. | DataReservation |
| datareservation.destroy | When an object of type DataReservation is destroyed. | DataReservation |
| datareservation.updated | When an object of type DataReservation has an attribute or association updated. | DataReservation |
Interface Details
The Data Orchestrator subsystem has a well defined interface. This interface can be accessed using a command line interface (CLI), REST interface, and Web user interface. This interface is how all other subsystems and actors can access the system.
Action edgemere diml dml do evaluate
- REST - /edgemere/diml/dml/do/evaluate?request=ref
- bin - edgemere diml dml do evaluate –request ref
- js - .edgemere.diml.dml.do.evaluate({ request:ref })
Description
Reserve a Data Instances from a Data Request
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| request | ref | true | This is the data request to get the reservations |
Action edgemere diml dml do reserve
- REST - /edgemere/diml/dml/do/reserve?request=ref
- bin - edgemere diml dml do reserve –request ref
- js - .edgemere.diml.dml.do.reserve({ request:ref })
Description
Reserve a Data Instances from a Data Request
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| request | ref | true | This is the data request to get the reservations |
Action edgemere diml dml do datainstance create
- REST - /edgemere/diml/dml/do/datainstance/create?dataref=json
- bin - edgemere diml dml do datainstance create –dataref json
- js - .edgemere.diml.dml.do.datainstance.create({ dataref:json })
Description
Create a Data Instance from a Data Reference
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| dataref | json | false | This is a Data Reference that should be turned into a Data Instance |
Action edgemere diml dml do datainstance destroy
- REST - /edgemere/diml/dml/do/datainstance/destroy?attr1=string
- bin - edgemere diml dml do datainstance destroy –attr1 string
- js - .edgemere.diml.dml.do.datainstance.destroy({ attr1:string })
Description
Description of the action
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| attr1 | string | false | Description for the parameter |
Action edgemere diml dml do datainstance find
- REST - /edgemere/diml/dml/do/datainstance/find?attr1=string
- bin - edgemere diml dml do datainstance find –attr1 string
- js - .edgemere.diml.dml.do.datainstance.find({ attr1:string })
Description
Description of the action
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| attr1 | string | false | Description for the parameter |
Action edgemere diml dml do datainstance list
- REST - /edgemere/diml/dml/do/datainstance/list?attr1=string
- bin - edgemere diml dml do datainstance list –attr1 string
- js - .edgemere.diml.dml.do.datainstance.list({ attr1:string })
Description
Description of the action
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| attr1 | string | false | Description for the parameter |
