StackInstance
The StackInstance represents the execution of the Stack. This allows for control of the stack during execution.
Attributes
- name:string - Name of the stackinstance
- stdout:string -
- stderr:string -
- pid:string - process id of the service instance
- url:string -
Associations
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| app | 1 | ApplicationInstance | false | false | Application Instance of the stack instance |
| stack | 1 | Stack | false | false | Stack of the Stack Instance |
| services | n | ServiceInstance | true | true | Instances of the Services running in the Stack |
| parent | 1 | Service | Service definition for the instance. |
Users of the Model
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| stack | 1 | ServiceInstance | false | false | StackInstance that is running the service instance |
| instances | n | Stack | true | true | Instances of the stack |
| stack | n | SABundleInstance | false | false |

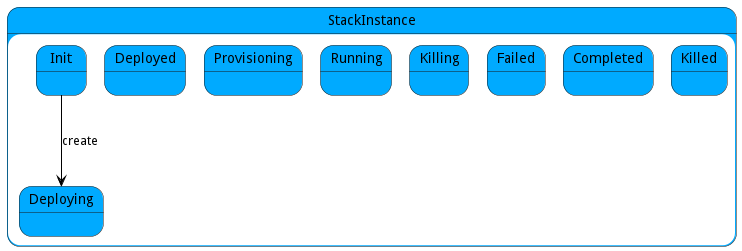

State Net
The StackInstance has a state net corresponding to instances of the class. Each state transistion will emit an event that can be caught with a websocket client. The name of the event is the name of the state in all lower case. The following diagram is the state net for this class.
| Name | Description | Events |
|---|---|---|
| Init | Initial State | create->Deploying, |
| Deploying | Deploying the Stack Instance by provisioning all the resources and data for the services | requestData->undefined, requestResources->undefined, |
| Deployed | The Service is deployed and ready for provisioning | |
| Provisioning | The Service is provisioning software. | |
| Running | The Service is running in the ecosystem | |
| Killing | The Service is being killed | |
| Failed | The ServiceInstance has failed | |
| Completed | The ServiceInstance has completed successfully | |
| Killed | The ServiceInstance has been killed successfully |
Methods
- launched() - Notification that the Service Instance was launched
- provision() - Provision the service with the provision script.
Method Details
Action stackinstance launched
- REST - stackinstance/launched?pid=string
- bin - stackinstance launched –pid string
- js - stackinstance.launched({ pid:string })
Description
Notification that the Service Instance was launched
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| pid | string | Process id of the service instance |
Action stackinstance provision
- REST - stackinstance/provision?
- bin - stackinstance provision
- js - stackinstance.provision({ })
Description
Provision the service with the provision script.
Parameters
No parameters
