DataChannel
This represents one channel in the data stream with specific rules for the channel.
Attributes
- name:string - Data Channel Name
- direction:string - In or Out
Associations

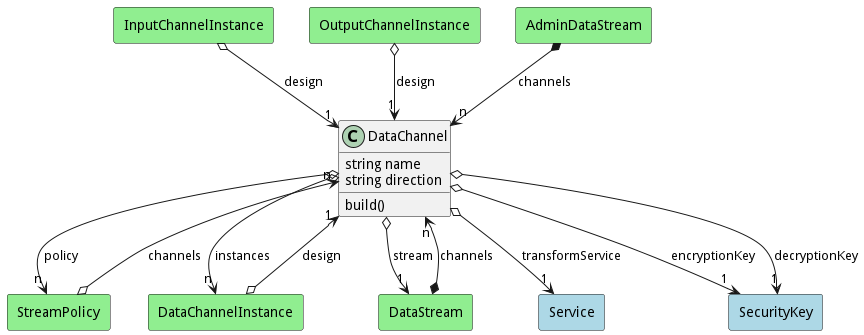

| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| transformService | 1 | Service | This is the transformation service for the channel. It will summarize the data, give historical data, give all of the data as a passthru, or any other data transformation needed for the individual channel based on the policy applied to the data stream | ||
| policy | n | ChannelCreationPolicy | This policy is the policy that will create an instance of the data channel attached to a data stream. The policy defines how the channel is created and what transformation service to use when publishing or consuming information on the channel. | ||
| instances | n | DataChannelInstance | This is a collection of all of the instances of the data channel running in the system. | ||
| stream | 1 | DataStream | This is the owning stream | ||
| encryptionKey | 1 | SecurityKey | Encryption Key for the channel | ||
| decryptionKey | 1 | SecurityKey | Decryption Key for the channel |
Users of the Model
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| channel | 1 | ChannelActivationItem | false | false | |
| channels | n | ChannelCreationPolicy | false | false | This collection of channels that are used to create channel instances when the stream is created. |
| design | 1 | DataChannelInstance | Parent of the channel Instance. This is the definition of the channel. | ||
| channels | n | DataStream | true | true | This is the collection of channel that are attached to this data stream |
| design | 1 | InputChannelInstance | Parent of the channel Instance. This is the definition of the channel. | ||
| design | 1 | OutputChannelInstance | Parent of the channel Instance. This is the definition of the channel. | ||
| channels | n | AdminDataStream | true | true | This is the collection of channel that are attached to this data stream |
State Net

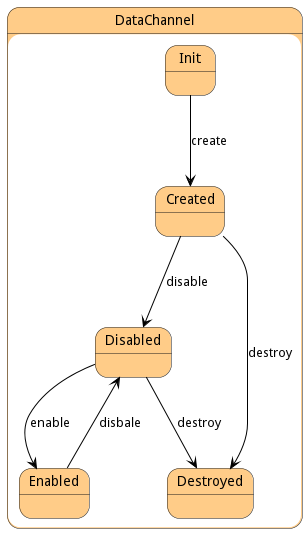

The DataChannel has a state net corresponding to instances of the class. Each state transistion will emit an event that can be caught with a websocket client. The name of the event is the name of the state in all lower case. The following diagram is the state net for this class.
| Name | Description | Events |
|---|---|---|
| Init | Initial State | create->Created, |
| Created | DataChannel is created | disable->Disabled, destroy->Destroyed, |
| Disabled | DataChannel is disabled | enable->Enabled, destroy->Destroyed, |
| Enabled | DataChannel is Enabled | disbale->Disabled, |
| Destroyed | DataChannel is destroyed |
Methods
Method Details
Action datachannel build
- REST - datachannel/build?
- bin - datachannel build
- js - datachannel.build({ })
Description
Build a Data Channel, generates the security keys for the data stream.
Parameters
No parameters
