DataStream
A Data stream defines where I am getting data from or pushing data.
Attributes
- name:string - Name of the Data Stream
Associations
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| policies | n | ChannelCreationPolicy | false | false | This is the collection policies that apply to the stream when the stream is created. |
| channels | n | DataChannel | true | true | This is the collection of channel that are attached to this data stream |
| instances | n | DataStreamInstance | false | true | This is the collection of deployed data streams in the system of this specific data stream. |
| transforms | n | DataTransform | This is the transformation that is called on data arriving to the Data Stream. | ||
| consumers | n | SABundle | This is a consumer of the data stream. | ||
| producers | n | SABundle | This is a producer of the data stream. | ||
| encryptionKey | 1 | SecurityKey | This is the encryption key for the data stream | ||
| decryptionKey | 1 | SecurityKey | This is the decryption key for the data stream |
Users of the Model
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| stream | n | ChannelCreationPolicy | false | false | This is the collection of streams that the policy is attached. The policy will only apply to the attached DataStreams. |
| stream | 1 | DataChannel | This is the owning stream | ||
| parent | 1 | DataStreamInstance | This is the parent of the data stream instance. | ||
| parent | 1 | InputStreamInstance | This is the parent of the data stream instance. | ||
| parent | 1 | OutputStreamInstance | This is the parent of the data stream instance. | ||
| inputs | n | AdminTransform | Inputs of the transformation. | ||
| outputs | n | AdminTransform | Outputs of the transformation. | ||
| inputs | n | DataTransform | Inputs of the transformation. | ||
| outputs | n | DataTransform | Outputs of the transformation. | ||
| inputs | n | SABundle | false | false | Input Data Streams for the SABR |
| outputs | n | SABundle | false | false | Output Data Streams for the SABR |
| learningStream | 1 | SABundle | Learning Corpus Stream receives updates and sends out updates to the aimodel | ||
| adminStream | 1 | SABundle | Administration Stream to handle registration of SABRS to Capabilities |
State Net

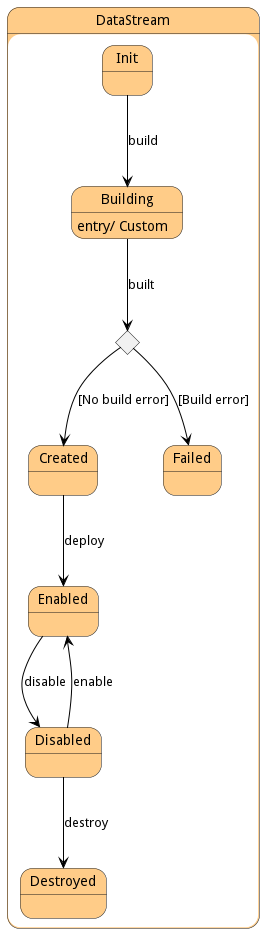

The DataStream has a state net corresponding to instances of the class. Each state transistion will emit an event that can be caught with a websocket client. The name of the event is the name of the state in all lower case. The following diagram is the state net for this class.
| Name | Description | Events |
|---|---|---|
| Init | Initial State | build->Building, |
| Building | Building the Data Stream | built->Created, |
| Created | DataStream is created | deploy->Enabled, |
| Disabled | DataStream is disabled | enable->Enabled, destroy->Destroyed, |
| Enabled | DataStream is Enabled | disable->Disabled, |
| Failed | Failed to build | |
| Destroyed | DataStream is destroyed |
Methods
- addKeysToStore() - Build a Data Stream, generates the security keys for the data stream.
- build() - Build a Data Stream, generates the security keys for the data stream.
- provision() - Provision a DataStream creates and instances of the data streamm to be deployed.
Method Details
Action datastream addKeysToStore
- REST - datastream/addKeysToStore?keyType=string&store=ref
- bin - datastream addKeysToStore –keyType string –store ref
- js - datastream.addKeysToStore({ keyType:string,store:ref })
Description
Build a Data Stream, generates the security keys for the data stream.
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| keyType | string | true | The type of keys to add to the store encrypt or decrypt |
| store | ref | true |
Action datastream build
- REST - datastream/build?
- bin - datastream build
- js - datastream.build({ })
Description
Build a Data Stream, generates the security keys for the data stream.
Parameters
No parameters
Action datastream provision
- REST - datastream/provision?bundle=ref&policies=ref
- bin - datastream provision –bundle ref –policies ref
- js - datastream.provision({ bundle:ref,policies:ref })
Description
Provision a DataStream creates and instances of the data streamm to be deployed.
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| bundle | ref | true | Bundle Instance to attach the stream instances. |
| policies | ref | true | Policies to use for deploying the Bundle. |
