ApplicationInstance
An Application Instance represents an application that is running in the ecosystem
Attributes
- name:string - Name of the application instance
- status:string - Name of the application instance
- message:string - Last message in the application instance
Associations
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| app | 1 | Application | false | false |
Users of the Model
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| instances | n | Application | true | true | |
| app | 1 | StackInstance | false | false | Application Instance of the stack instance |
State Net

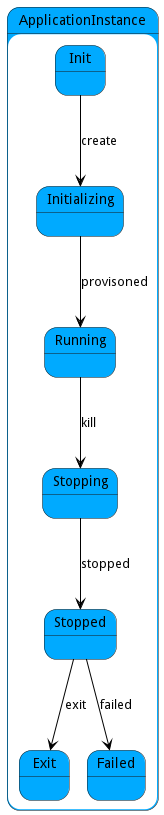

The ApplicationInstance has a state net corresponding to instances of the class. Each state transistion will emit an event that can be caught with a websocket client. The name of the event is the name of the state in all lower case. The following diagram is the state net for this class.
| Name | Description | Events |
|---|---|---|
| Init | Initial State of the Application Instance | create->Initializing, |
| Initializing | When a ApplicationInstance is being initialized in the ecosystem. | provisoned->Running, |
| Running | The ApplicationInstance is running in the ecosystem. | kill->Stopping, |
| Stopping | The ApplicationInstance is stopping but not stopped yet. | stopped->Stopped, |
| Stopped | The ApplicationInstance has been stopped. | exit->Exit, failed->Failed, |
| Exit | The ApplicationInstance has exited. | |
| Failed | The ApplicationInstance failed during initailization or after it was running. |
