OutputChannelInstance
This is the producer to the data stream. Data is flowing out of the transformation.
Attributes
- producer:ref - This is the reference to the producer. This can be implemented with pulsar or kafka.
- queue:ref - This contains an array of inputs that are backed up due to channel closure.
- producerName:string - This is the name of the pulsar producer
- name:string - Name of the data channel instance
- direction:string -
- message:string - Message string from the failed state.

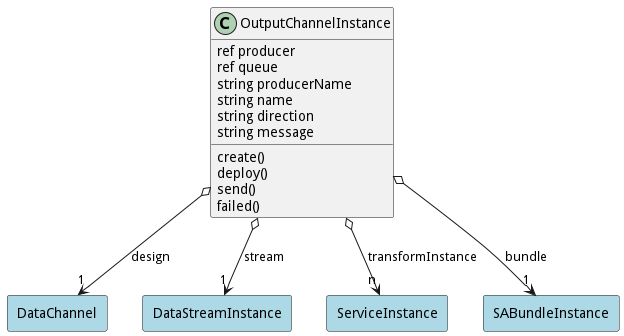

Associations
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| design | 1 | DataChannel | Parent of the channel Instance. This is the definition of the channel. | ||
| stream | 1 | DataStreamInstance | This is the stream instance that is running the channel | ||
| transformInstance | n | ServiceInstance | This is the instance of the transformation Service for the channel. | ||
| bundle | 1 | SABundleInstance | This is the sabr instance |
State Net

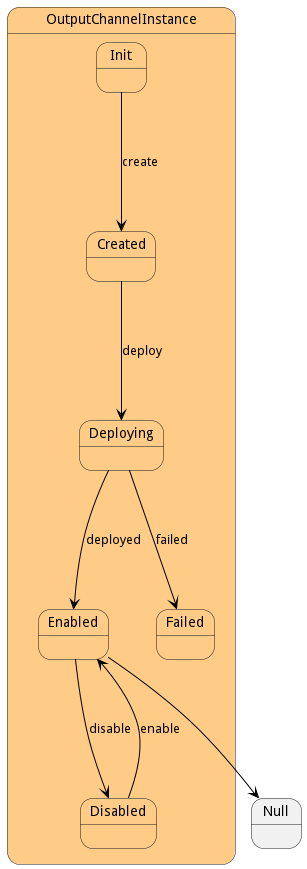

The OutputChannelInstance has a state net corresponding to instances of the class. Each state transistion will emit an event that can be caught with a websocket client. The name of the event is the name of the state in all lower case. The following diagram is the state net for this class.
| Name | Description | Events |
|---|---|---|
| Init | Initial State | create->Created, |
| Created | The Channel is created but not connected to message queues | deploy->Deploying, |
| Deploying | The channel is currently being deployed and connected to the message queues | deployed->Enabled, failed->Failed, |
| Enabled | Channel can send information. | disable->Disabled, |
| Disabled | Channel cannot send information. | enable->Enabled, |
| Failed | Channel failed to deploy. |
Methods
- create() - Create a Output Channel Instance
- deploy() - Deploy the output channel instance
- send() - Send data to the Data Stream Instance
- sendBatch() - Send data to the Data Stream Instance
- failed() - Deployment Failed on the Data Channel Instance.
Method Details
Action outputchannelinstance create
- REST - outputchannelinstance/create?
- bin - outputchannelinstance create
- js - outputchannelinstance.create({ })
Description
Create a Output Channel Instance
Parameters
No parameters
Action outputchannelinstance deploy
- REST - outputchannelinstance/deploy?
- bin - outputchannelinstance deploy
- js - outputchannelinstance.deploy({ })
Description
Deploy the output channel instance
Parameters
No parameters
Action outputchannelinstance send
- REST - outputchannelinstance/send?data=json&properties=json
- bin - outputchannelinstance send –data json –properties json
- js - outputchannelinstance.send({ data:json,properties:json })
Description
Send data to the Data Stream Instance
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| data | json | true | Data to send to the data stream |
| properties | json | true | Properties of the data being sent. |
Action outputchannelinstance sendBatch
- REST - outputchannelinstance/sendBatch?data=json
- bin - outputchannelinstance sendBatch –data json
- js - outputchannelinstance.sendBatch({ data:json })
Description
Send data to the Data Stream Instance
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| data | json | true | Data to send to the data stream |
Action outputchannelinstance failed
- REST - outputchannelinstance/failed?message=string
- bin - outputchannelinstance failed –message string
- js - outputchannelinstance.failed({ message:string })
Description
Deployment Failed on the Data Channel Instance.
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| message | string | true | Failed Message for the deployment error. |
