SABundleInstance
Instance of a sentient agent bundle. This is were things are running. This includes the instances of services, channels, transformation services, etc…
Attributes
- name:string - Name of the sentient agent bundle instance
- level:string - Level of the SABR Instance. Determines the mode of operation.

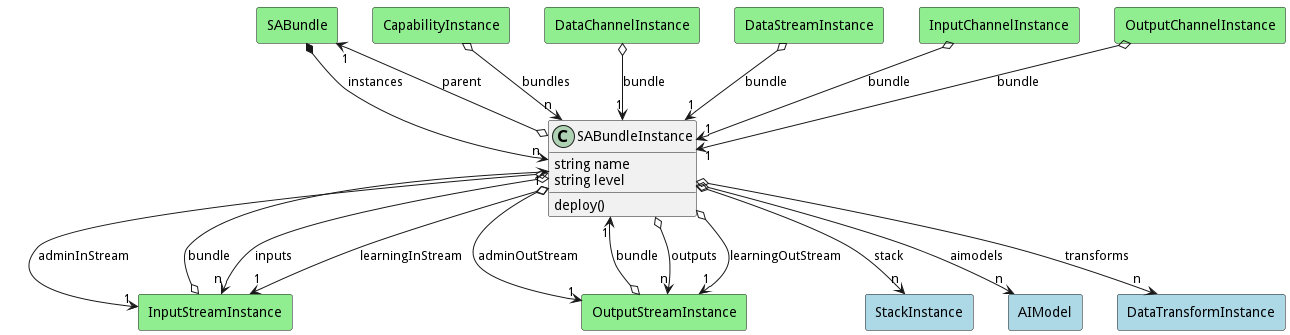

Associations
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| parent | 1 | SABundle | Parent of the SAB Instance | ||
| inputs | n | InputStreamInstance | false | false | Input Data Streams for the SABR |
| outputs | n | OutputStreamInstance | false | false | Output Data Streams for the SABR |
| learningInStream | 1 | InputStreamInstance | Learning Corpus Input Stream receives updates to the aimodel | ||
| adminInStream | 1 | InputStreamInstance | Administration Stream to handle registration of SABRS to Capabilities | ||
| learningOutStream | 1 | OutputStreamInstance | Learning Corpus Input Stream receives updates to the aimodel | ||
| adminOutStream | 1 | OutputStreamInstance | Administration Stream to handle registration of SABRS to Capabilities | ||
| stack | n | StackInstance | false | false | |
| aimodels | n | AIModel | false | false | |
| transforms | n | DataTransformInstance | false | false |
Users of the Model
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| bundles | n | CapabilityInstance | Bundle instances running on the ecosystem. | ||
| bundle | 1 | DataChannelInstance | This is the sabr instance | ||
| bundle | 1 | DataStreamInstance | This is the Bundle instance that the data stream instance is connected. | ||
| bundle | 1 | InputChannelInstance | This is the sabr instance | ||
| bundle | 1 | InputStreamInstance | This is the Bundle instance that the data stream instance is connected. | ||
| bundle | 1 | OutputChannelInstance | This is the sabr instance | ||
| bundle | 1 | OutputStreamInstance | This is the Bundle instance that the data stream instance is connected. | ||
| instances | n | SABundle | false | true |
State Net

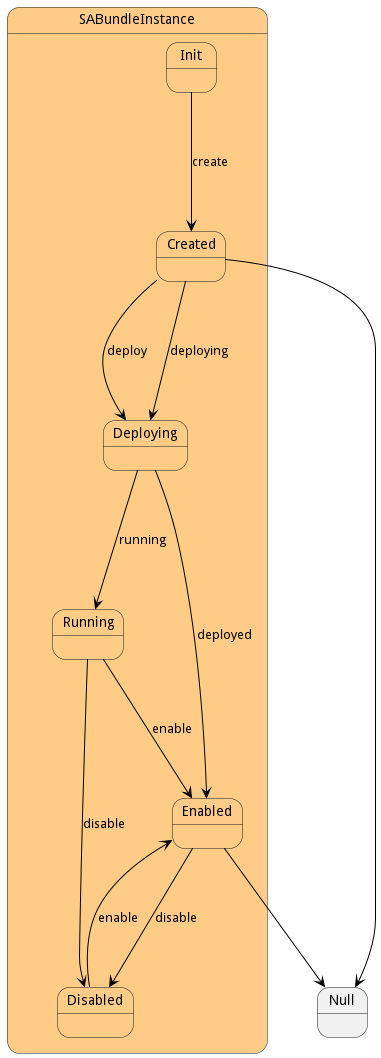

The SABundleInstance has a state net corresponding to instances of the class. Each state transistion will emit an event that can be caught with a websocket client. The name of the event is the name of the state in all lower case. The following diagram is the state net for this class.
| Name | Description | Events |
|---|---|---|
| Init | Initial State | create->Created, |
| Created | The SABR has been created and ready to be deployed. | deploy->Deploying, deploying->Deploying, |
| Deploying | The SABR is connecting to all of the streams including admin and learning streams. | deployed->Enabled, running->Running, |
| Running | The SABR is Running. This state is for server that deployed the SABR. | enable->Enabled, disable->Disabled, |
| Enabled | The SABR is running all transformation and streams are receiving and transmitting | disable->Disabled, |
| Disabled | The SABR is disabled and is not receiving or transmitting data. | enable->Enabled, |
Methods
Method Details
Action sabundleinstance deploy
- REST - sabundleinstance/deploy?policies=ref¶meters=json
- bin - sabundleinstance deploy –policies ref –parameters json
- js - sabundleinstance.deploy({ policies:ref,parameters:json })
Description
Deploy a a SABundleInstance
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| policies | ref | true | Policies to use for deploying the Bundle. |
| parameters | json | false | Parameters for the Instance |
