OutputStreamInstance

This is a specialization of the DataStreamInstance for producing output.

Logical Diagram

Attributes

  • producer:ref - This is the producer send output.
  • name:string - Name of the Data Stream
  • direction:string - In or Out

Associations

Name Cardinality Class Composition Owner Description
parent 1 DataStream     This is the parent of the data stream instance.
bundle 1 SABundleInstance     This is the Bundle instance that the data stream instance is connected.
channels n DataChannelInstance true true This is the collection of channel instances that are attached to this data stream
policies n DataChannelInstance   false This is the list of policies that are controlling the channels of the stream. They can come from the DataStream, the Resource, or the system overall.
transforms n DataTransformInstance   false These are the transforms to run on the stream before it goes to the output streams.

Users of the Model

Name Cardinality Class Composition Owner Description
outputs n DataTransformInstance     Outputs of the transformation.
outputs n SABundleInstance false false Output Data Streams for the SABR
learningOutStream 1 SABundleInstance     Learning Corpus Input Stream receives updates to the aimodel
adminOutStream 1 SABundleInstance     Administration Stream to handle registration of SABRS to Capabilities

State Net

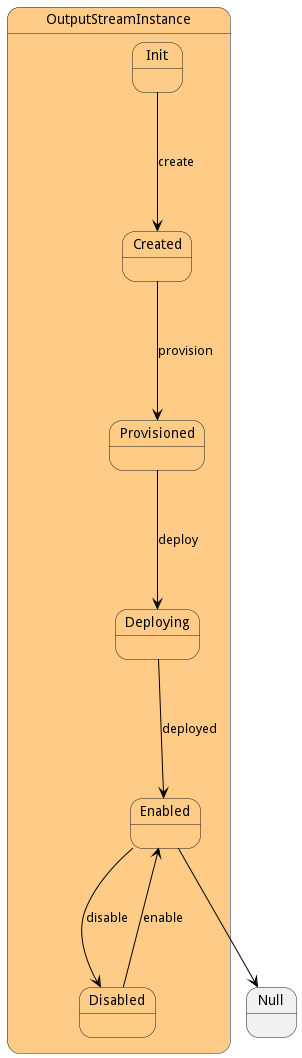

The OutputStreamInstance has a state net corresponding to instances of the class. Each state transistion will emit an event that can be caught with a websocket client. The name of the event is the name of the state in all lower case. The following diagram is the state net for this class.

State Net Diagram

Name Description Events
Init Initial State create->Created,
Created Stream Instance created but not connected. provision->Provisioned,
Provisioned Stream Instance is provisioned and ready for deployment. deploy->Deploying,
Deploying Stream Instance is connecting to the message queues deployed->Enabled,
Enabled Stream Instance is ready to send information to the message queues. disable->Disabled,
Disabled Stream Instance cannot send information at this time and no transformations are working. enable->Enabled,

Methods

Method Details

Action outputstreaminstance deploy

  • REST - outputstreaminstance/deploy?policies=ref
  • bin - outputstreaminstance deploy –policies ref
  • js - outputstreaminstance.deploy({ policies:ref })

Description

Deploy a Data Stream Instance

Parameters

Name Type Required Description
policies ref true Policies to use for deploying the Bundle.

Action outputstreaminstance provision

  • REST - outputstreaminstance/provision?policies=ref
  • bin - outputstreaminstance provision –policies ref
  • js - outputstreaminstance.provision({ policies:ref })

Description

Provision a Data Stream Instance which will create channel instances for deployment.

Parameters

Name Type Required Description
policies ref true Policies to use for deploying the Bundle.

Action outputstreaminstance send

  • REST - outputstreaminstance/send?data=json&properties=json
  • bin - outputstreaminstance send –data json –properties json
  • js - outputstreaminstance.send({ data:json,properties:json })

Description

Send data to the Data Stream Instance

Parameters

Name Type Required Description
data json true Data to send to the data stream
properties json true Properties of the data being sent.

Action outputstreaminstance sendBatch

  • REST - outputstreaminstance/sendBatch?data=json
  • bin - outputstreaminstance sendBatch –data json
  • js - outputstreaminstance.sendBatch({ data:json })

Description

SendBatch data to the Data Stream Instance

Parameters

Name Type Required Description
data json true Data to send to the data stream
