Service
A Service is an orchestrate element that represents a container or vm running on a resource. The actual execution of the service is tracked by the ServiceInstance. A stack is made up of multiple services.
Attributes
- name:string - Name of the Service
- command:string - The command to run on the commandline.
- version:string - Version of the Service
- ports:json - List of ports internally
- expose:json - List of ports to expose
- parameters:json - [ {name: value} ] - Lsit of parameters for the service
- environment:json - {name:value, name2:value}
- provisionScript:ref - provision script to run on the deployed service.

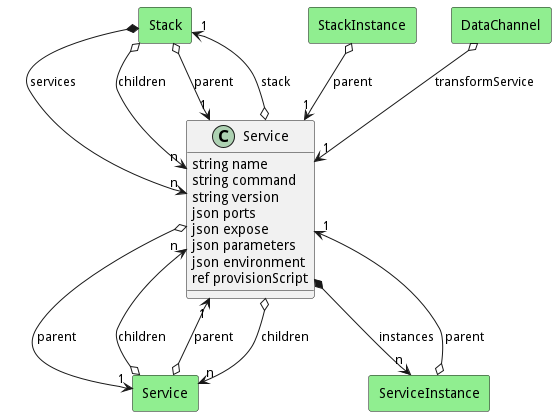

Associations
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| stack | 1 | Stack | false | false | Parent Stack of the service |
| children | n | Service | false | false | Child services of the service |
| parent | 1 | Service | false | false | Parent of the service |
| instances | n | ServiceInstance | true | Instances of the services. |
Users of the Model
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| children | n | Service | false | false | Child services of the service |
| parent | 1 | Service | false | false | Parent of the service |
| parent | 1 | ServiceInstance | Service definition for the instance. | ||
| services | n | Stack | true | true | Services of the stack |
| children | n | Stack | false | false | Child services of the service |
| parent | 1 | Stack | false | false | Parent of the service |
| parent | 1 | StackInstance | Service definition for the instance. | ||
| transformService | 1 | DataChannel | This is the transformation service for the channel. It will summarize the data, give historical data, give all of the data as a passthru, or any other data transformation needed for the individual channel based on the policy applied to the data stream |
