DataChannelInstance
Data Channel Instance represents the connection of the services to the channel at the edge
Attributes
- name:string - Name of the data channel instance
- direction:string -
- message:string - Message string from the failed state.

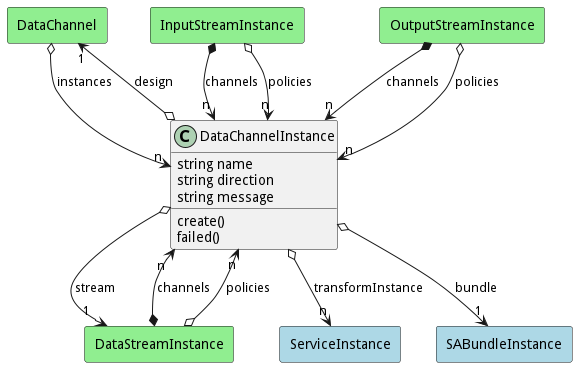

Associations
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| design | 1 | DataChannel | Parent of the channel Instance. This is the definition of the channel. | ||
| stream | 1 | DataStreamInstance | This is the stream instance that is running the channel | ||
| transformInstance | n | ServiceInstance | This is the instance of the transformation Service for the channel. | ||
| bundle | 1 | SABundleInstance | This is the sabr instance |
Users of the Model
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| instances | n | DataChannel | This is a collection of all of the instances of the data channel running in the system. | ||
| channels | n | DataStreamInstance | true | true | This is the collection of channel instances that are attached to this data stream |
| policies | n | DataStreamInstance | false | This is the list of policies that are controlling the channels of the stream. They can come from the DataStream, the Resource, or the system overall. | |
| channels | n | InputStreamInstance | true | true | This is the collection of channel instances that are attached to this data stream |
| policies | n | InputStreamInstance | false | This is the list of policies that are controlling the channels of the stream. They can come from the DataStream, the Resource, or the system overall. | |
| channels | n | OutputStreamInstance | true | true | This is the collection of channel instances that are attached to this data stream |
| policies | n | OutputStreamInstance | false | This is the list of policies that are controlling the channels of the stream. They can come from the DataStream, the Resource, or the system overall. |
State Net

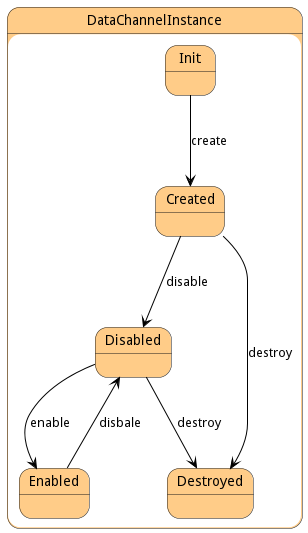

The DataChannelInstance has a state net corresponding to instances of the class. Each state transistion will emit an event that can be caught with a websocket client. The name of the event is the name of the state in all lower case. The following diagram is the state net for this class.
| Name | Description | Events |
|---|---|---|
| Init | Initial State | create->Created, |
| Created | DataChannelInstance is created | disable->Disabled, destroy->Destroyed, |
| Disabled | DataChannelInstance is disabled | enable->Enabled, destroy->Destroyed, |
| Enabled | DataChannelInstance is Enabled | disbale->Disabled, |
| Destroyed | DataChannelInstance is destroyed |
Methods
- create() - Create a Data Channel Instance
- failed() - Deployment Failed on the Data Channel Instance.
Method Details
Action datachannelinstance create
- REST - datachannelinstance/create?name=string&file=YAML
- bin - datachannelinstance create –name string –file YAML
- js - datachannelinstance.create({ name:string,file:YAML })
Description
Create a Data Channel Instance
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| name | string | true | name of the Sentient Agent Bundle |
| file | YAML | false | file with the definition |
Action datachannelinstance failed
- REST - datachannelinstance/failed?message=string
- bin - datachannelinstance failed –message string
- js - datachannelinstance.failed({ message:string })
Description
Deployment Failed on the Data Channel Instance.
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| message | string | true | Failed Message for the deployment error. |
