ServiceInstance
This is an instance of a service running on resources. The Instance is allocated to resources based on the environment and policies of the Service and the Servicelet. A set of actions can be performed on the instance as defined by the runScripts association.
Attributes
- name:string - Name of the service instance
- pid:string - process id of the service instance
- url:string -
- stdout:string - stdout of the instance running.
- stderr:string - stderr of the instance running.

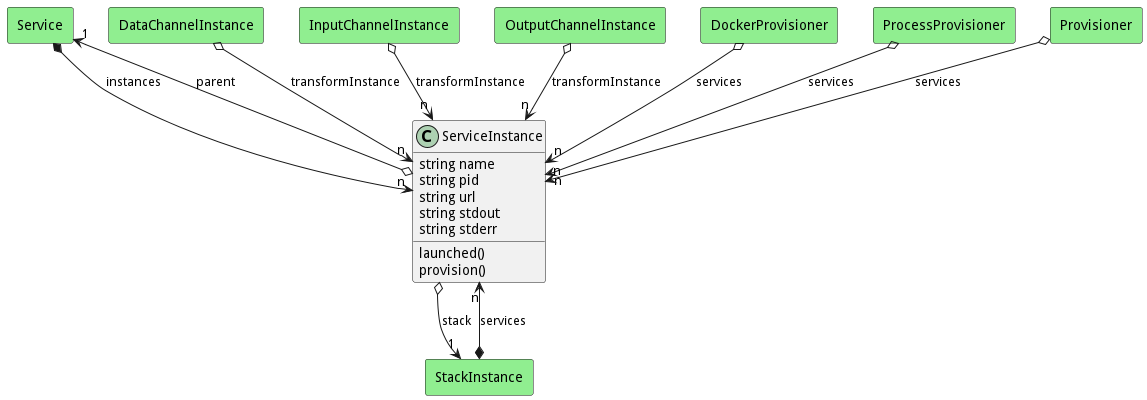

Associations
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| parent | 1 | Service | Service definition for the instance. | ||
| stack | 1 | StackInstance | false | false | StackInstance that is running the service instance |
Users of the Model
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| instances | n | Service | true | Instances of the services. | |
| services | n | StackInstance | true | true | Instances of the Services running in the Stack |
| transformInstance | n | DataChannelInstance | This is the instance of the transformation Service for the channel. | ||
| transformInstance | n | InputChannelInstance | This is the instance of the transformation Service for the channel. | ||
| transformInstance | n | OutputChannelInstance | This is the instance of the transformation Service for the channel. | ||
| services | n | DockerProvisioner | false | false | |
| services | n | ProcessProvisioner | false | false | |
| services | n | Provisioner | false | false |
State Net

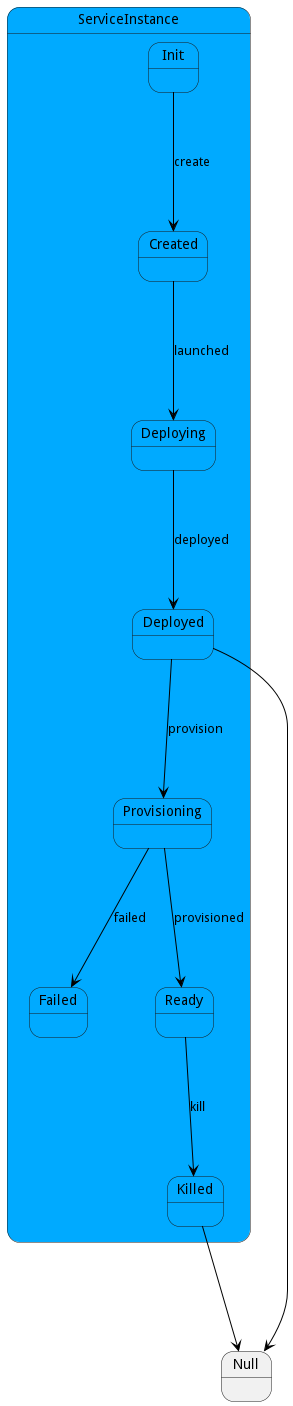

The ServiceInstance has a state net corresponding to instances of the class. Each state transistion will emit an event that can be caught with a websocket client. The name of the event is the name of the state in all lower case. The following diagram is the state net for this class.
| Name | Description | Events |
|---|---|---|
| Init | Initial State | create->Created, |
| Created | Service Instance Created. | launched->Deploying, |
| Deploying | Service Instance is deploying. | deployed->Deployed, |
| Deployed | Service Instance is deployed and can accept configuration details. | provision->Provisioning, |
| Provisioning | Provisioning the instance with confrigurations | provisioned->Ready, failed->Failed, |
| Failed | Failed to provision | |
| Ready | Service instance is ready to use! | kill->Killed, |
| Killed | Service Instance is killed |
Methods
- launched() - Notification that the Service Instance was launched
- provision() - Provision the service with the provision script.
Method Details
Action serviceinstance launched
- REST - serviceinstance/launched?pid=string
- bin - serviceinstance launched –pid string
- js - serviceinstance.launched({ pid:string })
Description
Notification that the Service Instance was launched
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| pid | string | Process id of the service instance |
Action serviceinstance provision
- REST - serviceinstance/provision?
- bin - serviceinstance provision
- js - serviceinstance.provision({ })
Description
Provision the service with the provision script.
Parameters
No parameters
