DataStreamInstance
This represents a data stream that has been deployed and is running in the system.
Attributes
- name:string - Name of the Data Stream
- direction:string - In or Out

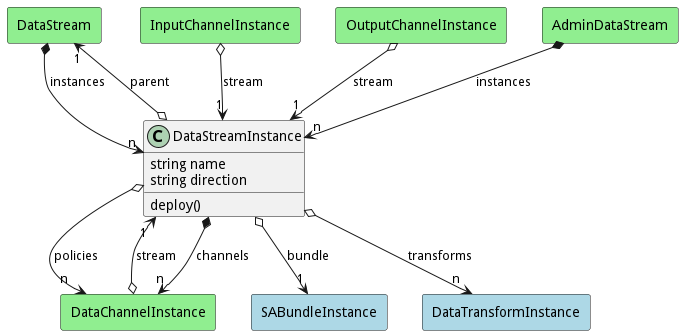

Associations
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| parent | 1 | DataStream | This is the parent of the data stream instance. | ||
| bundle | 1 | SABundleInstance | This is the Bundle instance that the data stream instance is connected. | ||
| channels | n | DataChannelInstance | true | true | This is the collection of channel instances that are attached to this data stream |
| policies | n | DataChannelInstance | false | This is the list of policies that are controlling the channels of the stream. They can come from the DataStream, the Resource, or the system overall. | |
| transforms | n | DataTransformInstance | false | These are the transforms to run on the stream before it goes to the output streams. |
Users of the Model
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| stream | 1 | DataChannelInstance | This is the stream instance that is running the channel | ||
| instances | n | DataStream | false | true | This is the collection of deployed data streams in the system of this specific data stream. |
| stream | 1 | InputChannelInstance | This is the stream instance that is running the channel | ||
| stream | 1 | OutputChannelInstance | This is the stream instance that is running the channel | ||
| instances | n | AdminDataStream | false | true | This is the collection of deployed data streams in the system of this specific data stream. |
State Net
The DataStreamInstance has a state net corresponding to instances of the class. Each state transistion will emit an event that can be caught with a websocket client. The name of the event is the name of the state in all lower case. The following diagram is the state net for this class.
| Name | Description | Events |
|---|---|---|
| Init | Initial State | deploy->Created, |
| Created | DataStreamInstance is created | disable->Disabled, destroy->Destroyed, |
| Disabled | DataStreamInstance is disabled | enable->Enabled, destroy->Destroyed, |
| Enabled | DataStreamInstance is Enabled | disbale->Disabled, |
| Destroyed | DataStreamInstance is destroyed |
Methods
Method Details
Action datastreaminstance deploy
- REST - datastreaminstance/deploy?policies=ref
- bin - datastreaminstance deploy –policies ref
- js - datastreaminstance.deploy({ policies:ref })
Description
Deploy a Data Stream Instance
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| policies | ref | true | Policies to use for deploying the Bundle. |
