Capability
Capabilities are deployed across multiple assets in the ecosystem. They consist of connecting multiple SABRs together to show a flow of data through the system. The Capability contains policies that define how the SABR bundles should react to different events in the system. Instances of the Capabilities are managed from the capability manager and consist of all of the information about the running capability.
Attributes
- name:string - Name of the capability to deploy to the network
Associations
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| policies | n | ChannelCreationPolicy | Policies to apply to the bundles when they are deployed. | ||
| bundles | n | SABundle | false | false | SABR Bundles that make up the Capabilities. |
| instances | n | CapabilityInstance | true | true | This is a instance of capability running in the ecosystem. |
Users of the Model
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| owner | 1 | CapabilityInstance | false | false | Owner of the instance is the capability. |
State Net

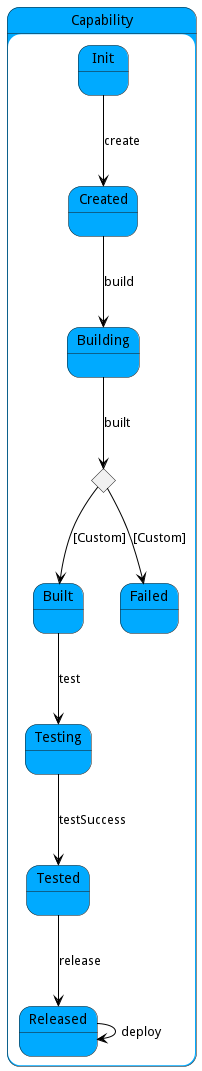

The Capability has a state net corresponding to instances of the class. Each state transistion will emit an event that can be caught with a websocket client. The name of the event is the name of the state in all lower case. The following diagram is the state net for this class.
| Name | Description | Events |
|---|---|---|
| Init | Initial State | create->Created, |
| Created | The Capability has been created and ready and can be built. | build->Building, |
| Building | The Capability is being built. | built->Built, |
| Built | The Capability has been built and ready to be deployed. | test->Testing, |
| Testing | The Capability is aggregated with all of the SABRs | testSuccess->Tested, |
| Tested | The Capability is aggregated with all of the SABRs | release->Released, |
| Released | The Capability is released and ready for Deployment | deploy->Released, |
| Failed | The Capability failed to be built or created. |
Methods
- build() - Build a Capability
- create() - Create a Capability
- deploy() - Deploy a Capability
- release() - Release a Capability
- test() - Test a Capability
Method Details
Action capability build
- REST - capability/build?name=string
- bin - capability build –name string
- js - capability.build({ name:string })
Description
Build a Capability
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| name | string | true | name of the build |
Action capability create
- REST - capability/create?name=string&file=file
- bin - capability create –name string –file file
- js - capability.create({ name:string,file:file })
Description
Create a Capability
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| name | string | true | name of the capability |
| file | file | false | file with the definition |
Action capability deploy
- REST - capability/deploy?
- bin - capability deploy
- js - capability.deploy({ })
Description
Deploy a Capability
Parameters
No parameters
Action capability release
- REST - capability/release?name=string
- bin - capability release –name string
- js - capability.release({ name:string })
Description
Release a Capability
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| name | string | true | name of the capability |
Action capability test
- REST - capability/test?name=string&file=YAML
- bin - capability test –name string –file YAML
- js - capability.test({ name:string,file:YAML })
Description
Test a Capability
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| name | string | true | name of the capability |
| file | YAML | false | file with the definition |
