CapabilityInstance
A CapabilityInstance contains the execution environment, logging, and state of a running capability in the ecosystem. This model provides an interface to manage and control the running instance.
Attributes
- name:string - Instance of the capability running in the system

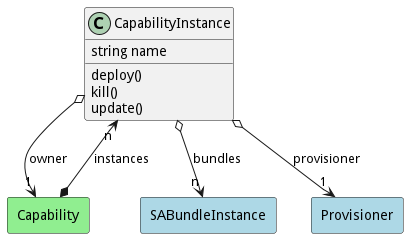

Associations
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| bundles | n | SABundleInstance | Bundle instances running on the ecosystem. | ||
| owner | 1 | Capability | false | false | Owner of the instance is the capability. |
| provisioner | 1 | Provisioner | Provisioner of the Instance |
Users of the Model
| Name | Cardinality | Class | Composition | Owner | Description |
|---|---|---|---|---|---|
| instances | n | Capability | true | true | This is a instance of capability running in the ecosystem. |
State Net

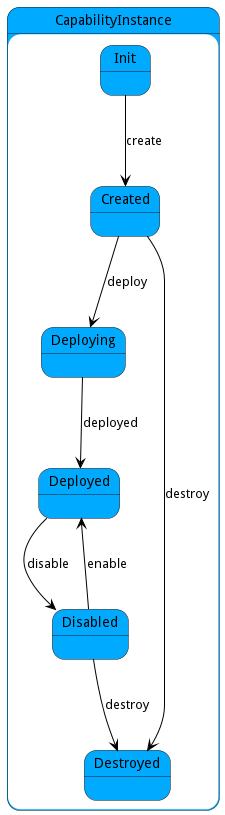

The CapabilityInstance has a state net corresponding to instances of the class. Each state transistion will emit an event that can be caught with a websocket client. The name of the event is the name of the state in all lower case. The following diagram is the state net for this class.
| Name | Description | Events |
|---|---|---|
| Init | Initial State | create->Created, |
| Created | Capability is created | deploy->Deploying, destroy->Destroyed, |
| Deploying | Capability is deploying | deployed->Deployed, |
| Deployed | The Capability is Deployed. | disable->Disabled, |
| Disabled | Stream is disabled | enable->Deployed, destroy->Destroyed, |
| Destroyed | Stream is destroyed |
Methods
- deploy() - Deploy a CapabilityInstance
- kill() - Kill a CapabilityInstance that is running in the ecosystem including all of the SABRs controlled by the capability.
- update() - Update a CapabilityInstance that is running in the ecosystem including all of the SABRs controlled by the capability.
Method Details
Action capabilityinstance deploy
- REST - capabilityinstance/deploy?
- bin - capabilityinstance deploy
- js - capabilityinstance.deploy({ })
Description
Deploy a CapabilityInstance
Parameters
No parameters
Action capabilityinstance kill
- REST - capabilityinstance/kill?signal=number
- bin - capabilityinstance kill –signal number
- js - capabilityinstance.kill({ signal:number })
Description
Kill a CapabilityInstance that is running in the ecosystem including all of the SABRs controlled by the capability.
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| signal | number | false | Signal of the kill command. |
Action capabilityinstance update
- REST - capabilityinstance/update?definition=json
- bin - capabilityinstance update –definition json
- js - capabilityinstance.update({ definition:json })
Description
Update a CapabilityInstance that is running in the ecosystem including all of the SABRs controlled by the capability.
Parameters
| Name | Type | Required | Description |
|---|---|---|---|
| definition | json | true | Definition of the Capability that is being updated. |
